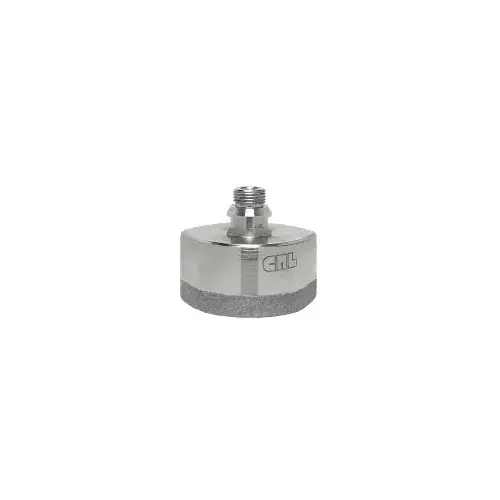

CRL HBT312 3-1/2" HBT Series Belgian Thread Electro-Formed Diamond Drill
Item #: HBT312 by CR Laurence
In Stock $699.33 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Extended Work Life
- For Fast Cutting, High Production Runs
- Two Mounting Styles to Choose from Straight Shank or Belgian Type
Diameter
3-1/2 in (88.9 mm)
Overall Length
2-7/8 in (73 mm)
Recommended RPM
900 - 1200
Drill Diameter
3-1/2" (89 mm)
Shank Type
Belgian
Drill Bit Material
Electro Formed Diamond
Diamond Matrix Depth (Inches)
1/2
Mounting Type
Shank
Length
2-7/8
Drill Bit Size
3-1/2
Shank Length
1-3/8
Shank Diameter
3/8
These CRL Electro-Formed Diamond Drills are thin-walled, with a 1/2" (12.7 mm) deep multi-layer of diamonds and bonding matrix designed for high speed, high production drilling. These drills give outstanding results when exacting conditions are met. The CRL DCD Series features an extra long 1-3/8" by 3/8" (35 by 9.5 mm) diameter shank for a positive grip on the drill. The CRL HBT Series features Belgian style mounting threads, also known as 1/2" (12.7 mm, gas thread), which are popular choices for U.S. and European glass drilling machines.
IMPORTANT NOTE: CRL DCD and HBT Series Diamond Drills have a very thin wall which makes them EXTREMELY FRAGILE. They are intended for the drilling of flat (plate) glass ONLY, in a true running production type drilling press. NEVER use in any type of hand drill. The use of these drills in any manner other than as specified above may damage them and will void any warranty. Always wear the proper safety gear including gloves and eye protection when drilling glass. Work should be performed on a flat, horizontal surface. A Ground Fault Circuit Interrupt Device Cat. No. GF1 must be used when using any type of electric tool in conjunction with water or coolant. Failure to follow any of these precautions can result in operator injury.
NOTE: Sharpening or "dressing" of this drill before each use will substantially increase its cutting capabilities and minimize "glazing" or dulling of the bit. A Dressing Stone is a recommended necessity when working with an Electro-Formed Diamond Drill.
Product Warning:
CRL HBT Series Diamond Drills have a very thin wall which makes them EXTREMELY FRAGILE. They are intended for the drilling of flat (plate) glass ONLY, in a true running, production type drilling press. NEVER use in any type of hand drill. The use of these drills in any manner other than as specified may damage them and will void any warranty.
Always wear the proper safety gear including gloves and eye protection when drilling glass. Work should be performed on a flat, horizontal surface. A Ground Fault Circuit Interrupter must be used when using any type of electric tool in conjunction with water or coolant. Failure to follow any of these precautions can result in operator injury.
