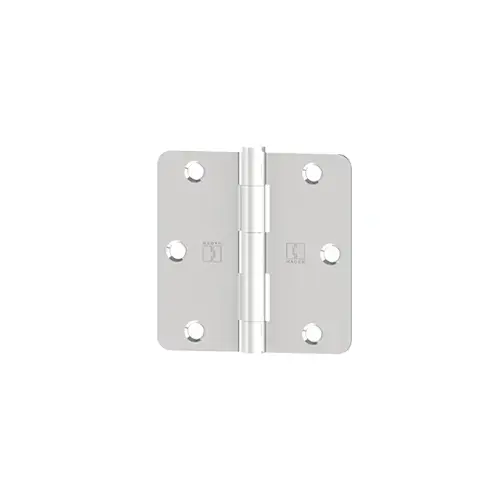

RC1748 3-1/2" x 3-1/2" 1/4" Radius Full Mortise Residential Plain Bearing Template Hinge Satin Nickel Finish

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Hager 016936 RC1748 3-1/2" x 3-1/2" 1/4" Radius Full Mortise Residential Plain Bearing Template Hinge Satin Nickel Finish

Item #: 016936 by Hager

Brand: Hager

UPC #: 041359169369

See reviewsSee reviews
See reviews summary
In Stock

$3.90

6.42 /each
SAVE UP TO 0.39
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 581 units available

Finish: Satin Nickel

Pack: each

pack of 2
each
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
  • Five Knuckle Plain Bearing Hinge
  • 1/4" Radius Corners
  • Reversible
  • Removable Pin
  • ANSI A8134

No of inners

1

Finish code

US15

Hazardous Material

No

Corner Type

1/4" Radius Corner

Knuckles

5 Knuckles

Bearing Type

Plain Bearing

Manufacturer Warranty

Limited Lifetime Warranty and 1 Year Finish Warranty

Hinge Type

Full Mortise Hinge

Pin Type

Removable Pin

Dimension

3-1/2" x 3-1/2"

HINGE FINISHES - RESIDENTIAL

US15 - SATIN NICKEL

Notes

  • Hager residential hinges are provided without lubrication. We recommend lubricating the hinges after installation.
  • All residential hinges conform to the "Light Weight" requirements of ANSI A156.1.

Gauge

0.085

Pin Diameter

0.234

Size

3-1/2" x 3-1/2"

Material

Steel with Steel Pin

Packaging

2 pack with AMS and 1/2 WS (10-24 X 1/2 machine / 1 X 9 wood)

Series

Hager Residential Hinge Series

Finish

Satin Nickel

Product Overview
5-Knuckle, Round Corner 1/4" Radius, Plain Bearing with fasteners
Applications:
For use on metal frame.
Notes:
  • Hager residential hinges are provided without lubrication. We recommend lubricating the hinges after installation.
  • All residential hinges conform to the "Light Weight" requirements of ANSI A156.1.

Certifications:
ANSI A8134
Features:
Reversible, Round corners 1/4" (6 mm) radius, Removable pin, Template hole pattern
Finishes:
2D, US3, US4, US10A, 10R, US15, US26, US26D, L2
