30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Constructed from steel material with a flat black finish for a neutral appearance in cabinet and furniture hardware applications.
- Measures 2-1/2" in length and 1" in width, with a projection of 1-7/16" for standard cabinet door installations.
- Designed for 3/4" door thickness and compatible with both frameless and face-frame cabinet types for versatile use.
- Features a partial wrap, non self-closing, free swinging motion technology for manual cabinet door operation.
- Includes No.6 flat head screws in 5/8" and 1/2" sizes to support secure screw-on mounting for cabinet doors.
- Suitable for cabinet and furniture hardware applications, providing a functional solution for door movement.
- Sold individually as a single unit, including all necessary mounting hardware for straightforward installation.
Series
Functional Hardware
Product Type
Hinge
Design
Functional Hardware
Base Material
Steel
Wrap Type
Non Self-Closing, Partial Wrap
Shelf Pack Width (in)
11
Shelf Pack Weight (lbs)
6
Shelf Pack Qty
50
Shelf Pack Length (in)
6.6
Shelf Pack Height (in)
4.5
Product Width Decimal (in)
1
Product Projection Fraction (in)
1 7/16
Product Projection Decimal (in)
1.4375
Product Projection (mm)
36.5125
Product Length Decimal (in)
2.5
Pieces Per Package
50
Packaging Width (in)
4
Packaging Length (in)
5
Packaging Height (in)
1.25
Inset Fraction (in)
Full
Inset Decimal (in)
Full
Inset (mm)
Full
Individual Pack
Polybag
Collection
Functional Hardware
Product Weight
0.093
Style
N/A
Top/Bottom Widths
NO
Finish
Flat Black
Material
Steel
Length
2-1/2
Width
1
Type
Partial Wrap Ball Tip
Size
3/4 Inch Door Thickness
Pack Size
1
Projection
1-7/16 in(37mm)
Product Length (in.)
2-1/2
Product Width (in.)
1
Includes Hardware
#6 Flat Head Screw X 5/8In & #6 Flat Head Screw X 1/2In
Product Width (mm)
25
Product Length (mm)
64
Master Pack Qty
0
Master Pack I2of5 (in)
20026634234707
Cabinet Type
Frameless, Face-frame
Door Thickness (in.)
3/4 in
Material Type
Steel
Width (in)
1 in
Length (in)
2-1/2 in
Color/Finish
Flat Black
Mount Type
Screw-On
Motion Technology
Free swinging
Overlay (In.)
3/4 in
Projection (In.)
1-7/16 in
Manufacturer Warranty
Limited Lifetime Warranty
Collection Name
Full Inset
Hazardous Material
No
Finish code
FB
No of inners
1
Quantity
0
Product Overview

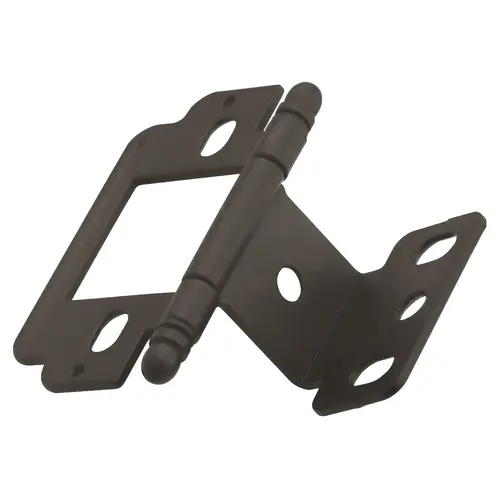

The 3/4" Full Inset Partial Wrap Ball Tip Cabinet Hinge is a functional hardware component designed for cabinet doors. Constructed from steel, this hinge is suitable for both frameless and face-frame cabinet types. It features a partial wrap design and is a free swinging, non self-closing hinge. The hinge measures 2-1/2" in length and 1" in width, with a projection of 1-7/16". It is specifically designed for doors with a 3/4" thickness. The hinge is finished in a flat black color, providing a neutral aesthetic for various cabinetry styles. Installation is facilitated by the included mounting hardware, which consists of No.6 flat head screws in 5/8" and 1/2" sizes. This screw-on mount hinge is sold individually and is designed for consistent use in residential or commercial cabinetry applications.
