30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Constructed from steel with a Oil Rubbed Bronze finish for use in cabinet and furniture hardware applications.
- Measures 2-1/2" in length and 1" in width, with a projection of 1-7/16" for standard cabinet door clearance.
- Designed for 3/4" door thickness and full inset overlay, compatible with both frameless and face-frame cabinet types.
- Features a partial wrap, non-self-closing, and free-swinging motion technology for manual cabinet door operation.
- Includes No.6 flat head screws in 5/8" and 1/2" sizes to assist with the screw-on mounting process.
- Suitable for cabinet and furniture hardware, providing a functional hinge solution for various storage units.
- Sold individually as a single unit, offering flexibility for cabinet repair or new installation projects.
Finish
Oil Rubbed Bronze
Top/Bottom Widths
NO
Style
N/A
Product Weight
0.093
Collection
Functional Hardware
Product Length
2-1/2 Inch
Product Width
1 Inch
Individual Pack
Polybag
Inset (mm)
Full
Inset Decimal (in)
Full
Inset Fraction (in)
Full
Packaging Height (in)
1.25
Packaging Length (in)
3
Packaging Width (in)
1.5
Pieces Per Package
50
Product Length Decimal (in)
2.5
Product Projection (mm)
36.5125
Product Projection Decimal (in)
1.4375
Product Projection Fraction (in)
1 7/16
Product Width Decimal (in)
1
Shelf Pack Height (in)
3.9
Shelf Pack Length (in)
10.7
Shelf Pack Qty
50
Shelf Pack Weight (lbs)
5.8
Shelf Pack Width (in)
10.3
Wrap Type
Non Self-Closing, Partial Wrap
Base Material
Steel
Design
Functional Hardware
Product Type
Cabinet Hinge
Series
Functional Hardware
Material
Steel
Length
2-1/2
Width
1
Type
Partial Wrap Ball Tip
Size
3/4 Inch Door Thickness
Pack Size
1
Projection
1-7/16 in(37mm)
Function
Cabinet Hinge
Finish Description
Oil Rubbed Dark Bronze
Finish Family
Dark Bronze
Included Components
(2) #6 F.H. x 5/8" LGTH; (4) #6 F.H. x 1/2" LGTH
Product Material
Steel
Standards
KCMA; BHMS
Function Family
Hinge/Pivot
Product Projection
1-7/16 Inch
Color Code
ORB
Door Thickness
3/4 Inch
Manufacturer Parent
Amerock
Sub-Series
PK3180TB-ORB
Product Length (in.)
2-1/2
Product Width (in.)
1
Includes Hardware
#6 Flat Head Screw X 5/8In & #6 Flat Head Screw X 1/2In
Master Pack Weight
5.8
Master Pack Height
3.9
Master Pack Length
10.7
Master Pack Width
10.3
Product Width (mm)
25
Product Length (mm)
64
Master Pack Qty
50
Master Pack I2of5 (in)
20026634231546
Cabinet Type
Frameless, Face-frame
Door Thickness (in.)
3/4 in
Material Type
Steel
Width (in)
1 in
Length (in)
2-1/2 in
Color/Finish
oil rubbed bronze
Mount Type
Screw-On
Motion Technology
Free swinging
Overlay (In.)
3/4 in
Projection (In.)
1-7/16 in
Manufacturer Warranty
Limited Lifetime Warranty
Collection Name
Full Inset
Hazardous Material
No
Finish code
ORB
No of inners
1
Height
3.9
Weight
5.8
Quantity
50
Width
10.3
Product Overview

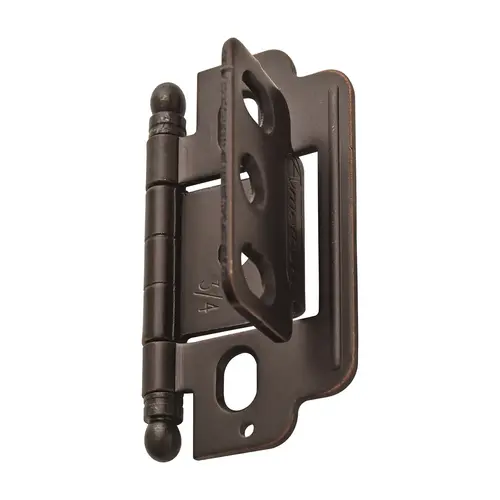

The 3/4" Full Inset Partial Wrap Ball Tip Cabinet Hinge is a functional hardware component designed for cabinet doors. Constructed from steel, this hinge is suitable for both frameless and face-frame cabinet types. It features a partial wrap design and is a non-self-closing, free-swinging hinge. The hinge measures 2-1/2" in length and 1" in width, with a projection of 1-7/16". It is specifically designed for doors with a 3/4" thickness and a full inset overlay. The hinge is finished in Oil Rubbed Bronze, providing a neutral aesthetic for various cabinetry styles. Installation is facilitated by the included No.6 flat head screws in 5/8" and 1/2" sizes. This hinge is part of the Functional Hardware series and is sold individually, intended for standard cabinet door mounting applications. The product includes a limited lifetime warranty, covering its use in furniture and cabinet hardware systems. It is designed for screw-on mounting, allowing for straightforward attachment to cabinet frames and doors.
