Features
Tools Product Type
Power Tool
Standard Color Family
Gray
Amperage
9
Power Tool Product Type
Bench & Stationary
Product Width (in.)
13
Built-In Light
Yes
Cut Type
Other
Magnetic
No
Certifications and Listings
CSA Listed
Voltage
115
Bench & Stationary Tool Type
Drill Press
Product Height (in.)
63
Product Depth (in.)
31
Cord Length (ft.)
5
Warranty
2 Year Warranty
Pack Size
1
Maximum Speed (rpm)
3630
UNSPSC
27111519
Spindle Thread
2MT
Swing
15 in
Phase
Single
Chucks Size
5/8 in
Column Diameter
2 7/8 in
Nominal Voltage
115 V
Drilling Capacity
1/2 in (steel);5/8 in (cast iron)
Power Cap. [Max]
3/4 hp
Speed [Max]
3,630 rpm
Speed [Min]
200 rpm
Base Length [Nom]
11 in
Base Width [Nom]
19 1/2 in
Table/Plate Length
10 in
Table/Plate Width
10 in
Chuck to Base Distance [Nom]
48 3/4 in
Swing Distance (Decimal Inch)
15.0000
Spindle Travel Length (Decimal Inch)
3.3750
Column Diameter (Inch)
2-7/8
Table Length (Decimal Inch)
11.5000
Spindle to Column Distance (Inch)
7-1/2
Spindle to Table Distance (Inch)
24
Spindle Taper Size
2MT
Swing Distance (Inch)
15
Drilling Capacity in Steel (Inch)
1/2
Minimum Spindle Speed (RPM)
200
Maximum Spindle Speed (RPM)
3630
Spindle Travel Length (Inch)
3-1/8
Drilling Capacity in Cast Iron (Inch)
5/8
Number of Spindle Speeds
16
Spindle Speed Control
Step Pulley
Vendor Drop Ship
N
Overall Depth (Inch)
13
Drive Type
Belt
Part no.
354400
Part Status
A
Product Overview

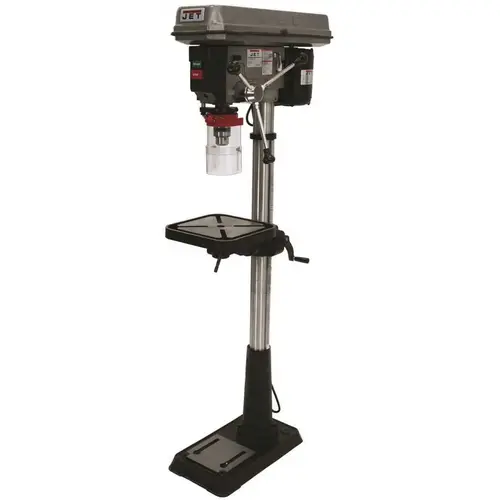

This high-performance metalworking drill press from Jet will dramatically expand your tool arsenal without taking up much floor space in the shop. This 9-Amp, 16-speed device produces 200-3630 RPM simply unlatch the spindle box and adjust according to your intended application. A quick-set bolt will precisely stop the quill at a predetermined depth while a 3/4 HP motor keeps the machine churning. The 5/8 in. chuck accommodates an assortment of bits and attachments (sold separately) for other uses, including mortising, shaping, plating, rounding or sanding.
- Head constructed of cast iron
- Production table has a 45° tilting capacity with mounting grooves
- Spindle assembly is a lubricated ball-bearing setup inside the head casting
- 2-year limited warranty
- Large ground steel column diameter for maximum head and table support
- Hinged metal belt and pulley cover
- Accurate depth stop displays inch/mm and has quick set bolt for fast, accurate adjustments
- 5/8 in. drill chuck and arbor
- 3/4 HP motor
- Massive T-slotted production table
- 3-1/8 in. stroke for deep hole applications
- Accurate depth stop for precise hole depths
- Spindle guard
- An oversized/bulky item that requires delivery by truck; please be aware of the dimensions and weight of this machine
- Jet offers full tech support in order to assist with any warranty issues; please call 1800-274-6846 for assistance
