304 Grade Brushed Stainless 1-1/2" Premium Cap Rail for 1/2" Glass - 120"

Roll over image to zoom in

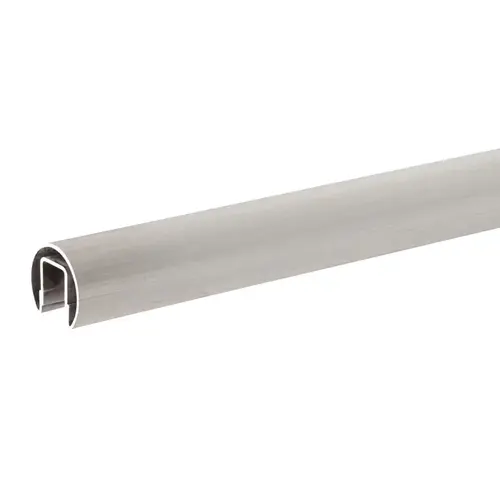

CRL GR15BS 304 Grade Brushed Stainless 1-1/2" Premium Cap Rail for 1/2" Glass - 120"

Item #: GR15BS by CR Laurence

See reviewsSee reviews
In Stock

$586.20

/each
SAVE UP TO 58.62

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Features
  • Bump-Formed and Welded 120" (3.05 m) and 168" (4.27 m) Stock Lengths are Available in Seven Diameters from 1-1/2" (38 mm) to 4" (101.6 mm)
  • Four Architectural Finishes
  • Connects to a Variety of Fabricated Corners and End Caps
  • Cut to Size or Custom Fabricated Lengths Also Available
  • Use Sleeve No. GR15CSS

Grade

304

W

5/8 in (15.9 mm)

Thickness

.050" (1.27 mm)

"D" Depth

5/16" (8 mm)

D

5/16 in (7.9 mm)

"W" Width

5/8" (16 mm)

Finish

Brushed Stainless Steel

Material

Stainless Steel

Depth

5/16

Length

120

Glazing Thickness

1/2

Profile

Round

Finish/Color

Brushed Stainless Steel

Diameter

1-1/2"

Product Overview

CRL's Premium Cap Rails are manufactured using a unique process known as Bump-Forming that ensures accuracy, consistency, and high quality. Unlike roll-formed cap rails, CRL's Bump-Formed Premium Cap Rails do not contain the stress and spring back associated with the roll-formed product. Welds on both sides of the channel add strength and stability to the Cap Rail. This results in a Cap Rail with tighter tolerances, consistent radius, and the ability to fit into welded corners without twist or discoloration. Put simply, it means this is the best product in the market place.
All CRL Premium Cap Rail are formed using precision tooling to maintain uniform diameters, allowing for smooth hairline transitions at splices, corners, and end caps. The internal channel is welded in place to increase strength and stability for fabrication. Use of our Cat. No. 32629 Metal Contact Cement is required to achieve a secure and permanent bond at all connections. Use Connector Sleeves to connect Cap Rails.
NOTE: 95CBL Silicone should be used to secure 1/2" or 5/8" glass. Please contact DK Hardware Sales for more information or for a quote.
Product Warning:
GR5PV Cap Rail Vinyl cannot be used with GR15 Cap Rails.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
