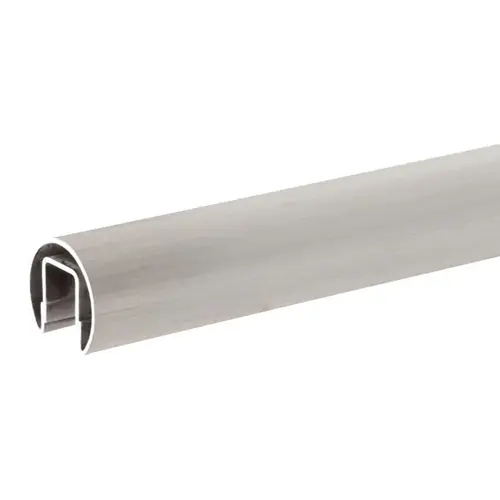

304 Grade Brushed Stainless 2" GRS Premium Cap Rail for 1/2" or 5/8" Glass - 120"

Roll over image to zoom in

CRL GR20BS 304 Grade Brushed Stainless 2" GRS Premium Cap Rail for 1/2" or 5/8" Glass - 120"

Item #: GR20BS by CR Laurence

See reviewsSee reviews
In Stock

$696.89

/each
SAVE UP TO 69.69

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Features
  • Bump-Formed and Welded 120" (3.05 m) and 168" (4.27 m) Stock Lengths are Available in Seven Diameters from 1-1/2" (38.1 mm) to 4" (101.6 mm)
  • Four Architectural Finishes
  • Connects to a Variety of Fabricated Corners and End Caps
  • Cut to Size or Custom Fabricated Lengths Also Available
  • Use Sleeve No. GR20CSS

Grade

304

Thickness

.050" (1.27 mm)

"D" Depth

3/8" (10 mm)

Depth

3/8" (9.5 mm)

"W" Width

3/4" (19 mm)

Type

2" GRS™ Premium Cap Rail for 1/2" or 5/8" Glass - 120"

Finish

Brushed Stainless Steel

Material

Stainless Steel

Length

120

Glazing Thickness

1/2 or 5/8

Finish/Color

Brushed Stainless Steel

Diameter

2"

Product Overview

CRL's GRS Premium Cap Rails are manufactured using a unique process known as Bump-Forming that ensures accuracy, consistency, and high quality. Unlike roll-formed cap rails, CRL's Bump-Formed Premium Cap Rails do not contain the stress and spring back associated with the roll-formed product. Welds on both sides of the channel add strength and stability to the Cap Rail. This results in a Cap Rail with tighter tolerances, consistent radius, and the ability to fit into welded corners without twist or discoloration. Put simply, it means this is the best product in the market place.
All CRL Premium Cap Rail are formed using precision tooling to maintain uniform diameters, allowing for smooth hairline transitions at splices, corners, and end caps. The internal channel is welded in place to increase strength and stability for fabrication. Use of our Cat. No. 32629 Metal Contact Cement is required to achieve a secure and permanent bond at all connections. Use Connector Sleeves to connect Cap Rails. Sold in 120" (3.05 m) lengths.
NOTE: When used with 1/2" (12 mm) glass, Cat. No. GR5PV Cap Rail Vinyl and 95CBL Silicone should be used to secure the glass. When used with 5/8" (16 mm) glass, secure with 95CBL Silicone Sealant and Shims. Please contact DK Hardware Sales for more information or for a quote.
Use of our 32629 Metal Contact Cement is required to achieve a secure and permanent bond at all connections.
Use the Connector Sleeves to connect Cap Rails. NOTE:When used with 3/4" (19 mm) glass, 95CBL Silicone and shims should be used to secure the glass. All CRL Premium Cap Railings are stainless alloy 304. Stainless alloy 316 is available on special order. Please contact DK Hardware Sales for more information or for a quote.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
