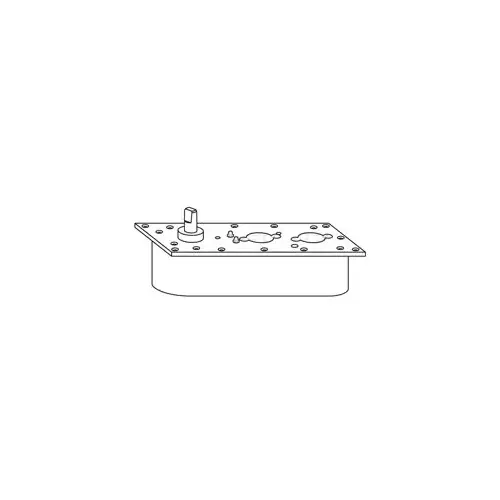

Rixson 30N LAP 30 Series Heavy Duty Floor Closer

Item #: 30N LAP by Rixson

See reviewsSee reviews
See reviews summary
In Stock

$1,675.80

/each
SAVE UP TO 167.58
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 12 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Type

Concealed Floor

Mounting Style

Center Hung

Hold Open

Without Hold Open

Fire Rated

No

Mounting Location

In Floor

Package Qty

1

Grade

ANSI/BHMA Grade 1

Product Type

Door Closer/Holder/Stop

Series

30 Inch Device

Warranty

10 year limited warranty

Aluminium Bottle Contents

Swinging

ProductType

Manual

Cement Case Height

3-5/8 Inch

Cement Case Width

5-3/8 Inch

Closer Application

Center Hung

Function

LAP-Body Only-NHO

Mount

Floor Mount

Maximum Door Weight

200 lbs.

Maximum Door Width

4 Foot

ADA Compliant

No

Included Components

340 Standard Top Pivot

Spindle Size

3/4 Inch

Standards

ANSI/C06012; ANSI/BHMA A156.4

Hold-Open Type

Non-Hold Open

Maximum Door Load

200 lbs

Function Family

Non Hold Open Door Closer

For Door Width

Up to 4' x 8' 6" (1219 x 2591mm)

Closer Action

Double Acting

Features

Adjustable Closing Speed Valves for Each Direction of Door Swing; Mechanism Returns Door to Center; Closer Body Only

Backcheck

true

Manufacturer Parent

Assa Abloy

Closer Hold-Open

false

Delayed Action

false

Floor Plate Length

15-1/8 Inch

Floor Plate Width

5-1/2 Inch

Cement Case Material

Steel Cement

Closer Arm Thickness

3/16 Inch

Sub-Series

30N-LAP

Application

Exterior or Interior Doors

Hand

Non-Handed

Handing

Non-Handed

Mounting Type

Center Hung

Product Overview
LAP If a closer is needed for replacement the arm cover cement case top pivot and floor plate are omitted. For interior or exterior doors. Weight up to 200 lbs and door sizes up to 4'0 x 8'6. Centering arm with adjustment screws in face of door (critical for double acting). Adjustable closing speed valves for each direction of door swing. Mechanism returns door to center. Auxiliary door stop required overhead or floor type. Available with floor plate or theshold installation. Steel cement case. Standard top pivot #340 included. Not allowed for fire-rated doors. Furnished with wood and machine screws. ANSI/C06012
