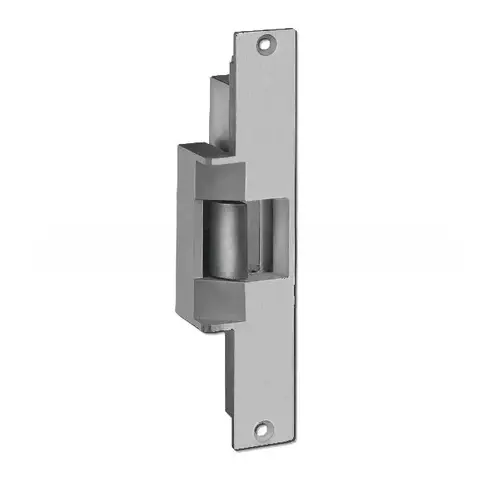

Folger Adam 310-2 24D 630 310-2-24D Electric Strike Satin Stainless Steel Finish
Item #: 310-2 24D 630 by Folger Adam
UPC #: 740090045269
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- UL 10C fire-rated, 3 hour single door (fail secure only)
- CAN4-S104 (ULC-S104) fire door conformant
- UL1034, burglary-resistant listed
- UL 294 (6th Edition) listed
- ANSI/BHMA A156.31, Grade 1
- New York City accepted
- NFPA-252 fire door conformant
- ASTM-E152 fire door conformant
- RoHS compliant
- .51 Amps @ 12VDC continuous duty
- .25 Amps @ 24VDC continuous duty
- Tamper resistant, heavy-duty construction
- Constructed entirely of stainless steel for strength and corrosion resistance
- Static strength 1,500 lbs.
- Dynamic strength 70 ft-lbs.
- Endurance rating 500,000 cycles
- Horizontally adjustable keeper to allow for door and frame misalignment
- 1/2" keeper depth (310-2)
- Non-handed
- Fail Secure (standard)
- Plug-in connector
- Five year limited warranty
- Fail Safe
- LCBMA - Latchbolt & Locking Cam Monitor with Auxiliary Switch (all except 310-2 3/4OB)
Finish
US32D Satin Stainless Steel (630)
Series
310 Series
Configuration
Centered
Use With
Cylindrical Locks, Mortise Exit and Latch Locks
Grade
Grade 1
Application
1/2" or 5/8" Latchbolt
Color Code
630/US32D
Function
Electrically Unlocked (Fail Secure)
Fire Rated
3 Hours {A}, Yes
Origin
USA
BAA Qualified
Yes
Package Height
2.5"
Package Length
12.25"
Package Volume
183.75
Package Width
6"
Amp Draw
.51 @ 12V .25 @ 24V
Faceplate Size
9 In. X 1-3/8 In.
Frame Application
Metal or Wood
Holding Force
1500
Keeper Size
1/2 In.
Operating Voltage
24VDC
Package Qty
1
Special Marks
Fire rated 3 Hours {A}
Base Material
Stainless Steel
Switch Type
None
Voltage
24V DC
Handing
Non-Handed
Latch Bolt
1/2" or 5/8"
Product Type
Electric Strike
Manufacturer Parent
Assa Abloy
Finish Description
Satin Stainless Steel
For Use With
Cylindrical and Mortise Locksets With 1/2" or 5/8" Throw Latchbolts
Latch Throw
1/2 Inch; 5/8 Inch
Sub-Series
EAC_Electric_Strike_hes_10
ADA Compliant
No
Mounting Type
Surface Mount
Function Family
Electric Strike
Standards
UL 10C Listed; CAN4-S104 (ULC-S104) Fire Door Conformant; UL 1034 Listed; UL 294 Listed; ANSI/BHMA A156.31, Grade 1; NFPA-252 Fire Door Conformant; ASTM-E152 Fire Door Conformant; RoHS Compliant
Features
Tamper Resistant; Heavy Duty Construction; Corrosion Resistance; Endurance 1 Million Cycles; Adjustable Keeper Allows for Door and Frame Alignment 1/2" Keeper Depths; Non-Handed; Plug-in Connector; Fire Rated; Burglary Rated
Product Material
Stainless steel
Strength
1500 (Static); 70 (Dynamic) lb; ft-lb
Current Draw
250mA
Warranty
SecuriCare 5 Year
Finish Family
Stainless Steel
Access Type
Electric Strike
Alternate Part Number-1
104832
Throw
1/2", 5/8"
Faceplate Style
Square Corner
Lock Category
Mortise Exit Devices, Mortise Lock
Fail Status
Fail Secure
Dimension
5-5/8" x 1-1/16" x 1-7/8"
Strike
310-2 12D Electric Strike
Manufacturer Warranty
1 Year Hassle Free Guarantee, 5 Year Limited Mechanical Warranty, and 1 Year Limited Electrical Warranty
Hazardous Material
No
Height
2.76
Length
12.2
Width
5.91
Product Overview
Fail Secure, Complete 24VDC Electric Strike, 1/2" Keeper, Satin Stainless Steel
The 310 Series is a 3 hour fire-rated, industrial grade electric strike designed for extreme heavy duty applications. The all stainless steel construction of this device makes it ideal for high abuse applications that would disable other electric strikes.
The 310 Series is a 3 hour fire-rated, industrial grade electric strike designed for extreme heavy duty applications.
The all stainless steel construction of this device makes it ideal for high abuse applications that would disable other electric strikes.
