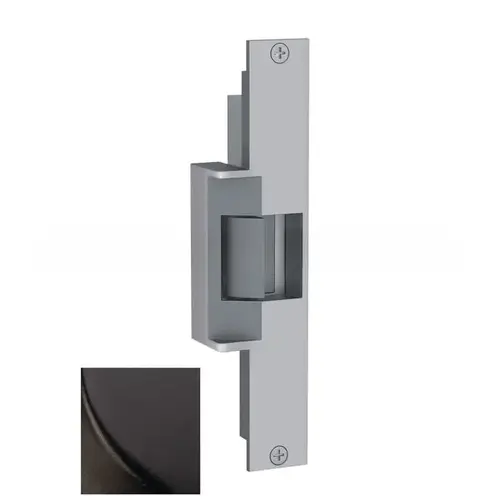

Folger Adam 310-2 613 310-2 Faceplate Only Oil Rubbed Bronze Finish
Item #: 310-2 613 by Folger Adam
UPC #: 740090232058
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- UL 10C fire-rated, 3 hour single door (fail secure only)
- UL 10C fire-rated, 3 hour double door (fail secure only)
- CAN4-S104 (ULC-S104) fire door conformant
- UL1034, burglary-resistant listed
- UL 294 (6th Edition) listed
- Non Handed
- ANSI/BHMA A156.31, Grade 1
- New York City accepted
- NFPA-252 fire door conformant
- ASTM-E152 fire door conformant
- RoHS compliant
- .51 Amps @ 12VDC continuous duty
- .25 Amps @ 24VDC continuous duty
- Tamper Resistant, Heavy-Duty Construction
- Constructed entirely of stainless steel for strength and corrosion resistance
- Static strength 1,500 lbs.
- Dynamic strength 70 ft-lbs.
- Endurance Rating 500,000 Cycles
- Horizontally adjustable keeper to allow for door and frame misalignment
- 1/2" keeper depth (310-2)
- Non-handed
- Fail Secure (standard)
- Plug-in connector
- Five year limited warranty
- Fail Safe
- LCBMA - Latchbolt & Locking Cam Monitor with Auxiliary Switch (all except 310-2 3/4OB)
Finish
Oil Rubbed Bronze
Function
Fail Secure
Series
310 Series
Strike
310-2 Electric Strike
Configuration
Centered
Use With
Cylindrical Locks, Mortise Exit and Latch Locks
Grade
Grade 1
Application
1/2" or 5/8" Latchbolt
Color
Dark Oxidized Satin Bronze Oil Rubbed
Color Code
613/US10B
Fire Rated
3 Hours {A}
Origin
USA
BAA Qualified
Yes
Package Height
2.625"
Package Length
11"
Package Volume
83.015625
Package Width
2.875"
Faceplate Size
9 In. X 1-3/8 In.
Frame Application
Metal or Wood
Holding Force
1500
Package Qty
1
Special Marks
Fire rated 3 Hours {A}
Base Material
Stainless Steel
Switch Type
None
Dimension
5-5/8" x 1-1/16" x 1-7/8"
Product Overview
Faceplate Only, 310-2, Oil Rubbed Bronze
The 310 Series is a 3 hour fire-rated, industrial grade electric strike designed for extreme heavy duty applications. The all stainless steel construction of this device makes it ideal for high abuse applications that would disable other electric strikes.
The 310 Series is a 3 hour fire-rated, industrial grade electric strike designed for extreme heavy duty applications.
The all stainless steel construction of this device makes it ideal for high abuse applications that would disable other electric strikes.
