Folger Adam 310-4 24D 613 310-4 24D Electric Strike Oil Rubbed Bronze Finish
Item #: 310-4 24D 613 by Folger Adam
Brand: Folger Adam
UPC #: 740090047461
See reviewsSee reviews
In Stock
$941.68
/eachQUICK SHIPPING*Usually ships in 1 business dayIn stock: 22 units available
Finish: Dark Oxidized Satin Bronze Oil Rubbed
Operating Voltage: 24VDC
12VDC
24VDC
Function: Electrically Unlocked (Fail Secure)
Electrically Locked (Fail Safe)
Electrically Unlocked (Fail Secure)
Switch Type: None
LCBMA
None
QTY
–
+
+ Add to Wishlist
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov

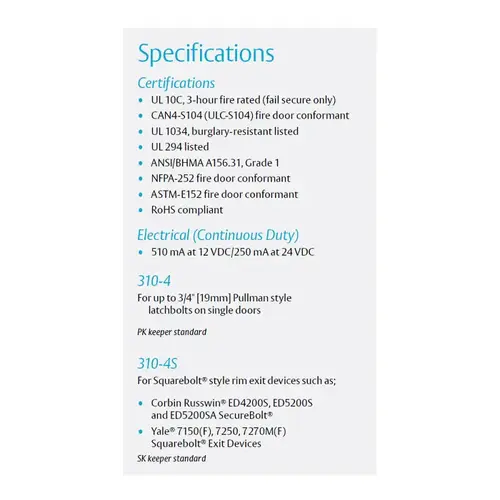

Features
- Ul 10C Fire-Rated, 3 Hour Single Door (Fail Secure Only)
- CAN4-S104 (ULC-S104) fire door conformant
- UL1034, burglary-resistant listed
- UL 294 (6th Edition) listed
- Non Handed
- ANSI/BHMA A156.31, Grade 1
- NFPA-252 fire door conformant
- ASTM-E152 fire door conformant
- .51 Amps @ 12VDC continuous duty
- .25 Amps @ 24VDC continuous duty
- Integrated shim for quick customization of faceplate thickness (1/2" to 3/4")
- Tamper Resistant, Heavy-Duty Construction
- Constructed entirely of stainless steel for strength and corrosion resistance
- Static strength 1,500 lbs.
- Dynamic strength 70 ft-lbs.
- Endurance Rating 500,000 Cycles
- Integrated ramps for better deadlatch handling
- Set screws for horizontal lockdown
- In-frame horizontal adjustability
- Wider faceplate (1-3/4”) for greater versatility
- Fail Secure (standard)
- Plug-in connector
- Five year limited warranty
- Fail Safe
- LCBMA - Latchbolt & Locking Cam Monitor with Auxiliary Switch
Finish
Oil Rubbed Bronze
Function
Electrically Unlocked (Fail Secure)
Series
310 Series
Strike
310-4 24D Electric Strike
Color Code
613/US10B
Color
Dark Oxidized Satin Bronze Oil Rubbed
Application
Pullman Latch Rim Panic Device
Grade
Grade 1
Use With
Rim Exit Devices
Configuration
Centered
Switch Type
None
Base Material
Stainless Steel
Special Marks
Fire rated 3 Hours {A}
Package Qty
1
Operating Voltage
24VDC
Keeper Size
PK
Holding Force
1500
Frame Application
Metal or Wood
Faceplate Size
9 In. X 1-1/2 In.
Amp Draw
.51 @ 12V .25 @ 24V
Package Width
6"
Package Volume
183.75
Package Length
12.25"
Package Height
2.5"
BAA Qualified
Yes
Origin
USA
Fire Rated
3 Hours {A}, Yes
Voltage
24 VDC
Mounting Type
Surface Mount
For Use With
Pullman Style Latchbolts Up to 3/4"
Warranty
SecuriCare 5 Year
Strength
1500 (Static); 70 (Dynamic) lb; ft-lb
Current Draw
250mA
Latch Throw
3/4 Inch
Finish Description
Oil Rubbed Dark Bronze
Product Height
1-45/64 Inch
Product Length
9 Inch
Product Width
1-3/4 Inch
ADA Compliant
No
Finish Family
Dark Bronze
Included Components
Set Screws for Horizontal Lockdown
Product Material
Stainless steel
Standards
UL 10C Listed; CAN4-S104 (ULC-S104) Fire Door Conformant; UL 1034 Listed; UL 294 Listed; ANSI/BHMA A156.31, Grade 1; NFPA-252 Fire Door Conformant; ASTM-E152 Fire Door Conformant; RoHS Compliant
Function Family
Electric Strike
Features
Tamper Resistant; Heavy Duty Construction; Corrosion Resistance; Endurance 1 Million Cycles; Non-Handed; Plug-in Connector; 3/4" Face Plate With An Integrated 1/4" Base Shim; In-Frame Horizontal Adjustability; Fire Rated; Burglary Rated
Product Type
Electric Strike
Manufacturer Parent
Assa Abloy
Sub-Series
EAC_Electric_Strike_hes_14
Windstorm Rated
No
Shim
Horizontally Adjustable
Outdoor Rated
No
Latch Specification
Latchbolt
Endurance Cycles
1,000,000
Fail Safe / Fail Secure
Fail-Secure
Preload Capable
No
Lock Type
Exit Device
Dynamic Strength
70 ft-lbs
Monitoring Option
None
Substrate Type
Stainless Steel
Electronic
Yes
Product Overview
Fail Secure, Complete 24VDC Electric Strike, PK Keeper, Oil Rubbed Bronze
The 310 Series is a 3 hour fire-rated, industrial grade electric strike designed for extreme heavy duty applications. The all stainless steel construction of this device makes it ideal for high abuse applications that would disable other electric strikes.
The 310-4 is a 3 hour fire-rated, industrial electric strike designed for extreme heavy duty applications.
The 310-4 has a unique 3/4" face plate with an integraded 1/4" base shim that can be removed in the field to accommodate rim exit devices with a 1/2" or 3/4" throw latchbolt.
