SPECIFICATIONS:
Glass Fabrication: Two 3/4" (19 mm) Diameter Holes Per Fitting
Spacing: Maximum spacing between fittings depends on use and mounting conditions; Hole spacing between Standoffs is 4" (102 mm)
Product Warning:
For Use with 11/16" & 27/32" (17.52mm and 21.52 mm) Laminated Glass Using Kuraray SentryGlas Interlayer. Do not use with raw or annealed glass)
NOTE: Bracket spacing and maximum glass panel widths vary depending on use and mounting conditions.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

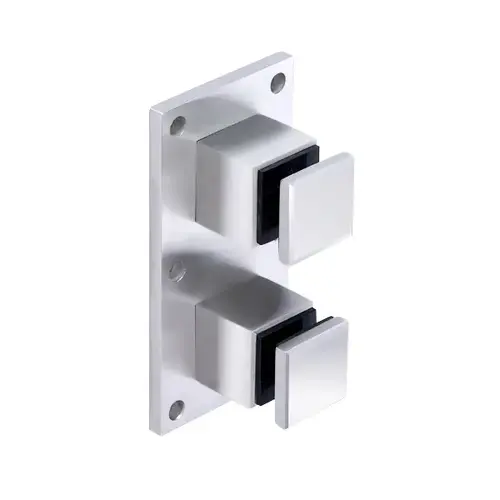

CRL SS0B20PS 316 Polished Stainless Steel Standard 2" Square Glass Rail Standoff Fitting with Mounting Plate
Item #: SS0B20PS by CR Laurence
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- High Grade 316 Stainless Steel Designed to Mount to Wood, Concrete or Steel
- For Use with 1/2" and 3/4" (12 and 19 mm) Monolithic Tempered Glass or 9/16" and 27/32" (13.52 and 21.52 mm) Laminated Glass Using Kuraray SentryGlas® Interlayer
- Custom Finishes Available
Glass Fabrication Required
Two 3/4" (19 mm) Diameter Holes Per Fitting
Mounting Plate Height
8" (203 mm)
Mounting Plate Width
4" (102 mm)
Finish
Polished Stainless Steel
Type
Standard
Material
316 Stainless Steel
Cap Height
2
Finish/Color
Polished Stainless Steel
Base Plate Height
8"
Base Plate Length
4"
Base Plate Thickness
3/8"
Base Plate Height
8 in. (203 mm)
Product Overview
CRL Glass Rail Square Standoff Fittingscan be used to mount glass up to 27/32" (21.52 mm) thick. This 316 grade stainless steel assembly can be mounted to a wood, concrete, or steel substrate, and features 2" (51 mm) square caps on threaded bolts to secure the glass. The 2" (51 mm) Square Standoffs are fastened to a 3/8" (10 mm) thick stainless steel plate that is pre-drilled for mounting. Two popular stainless finishes are available from stock.
SPECIFICATIONS:
Glass Fabrication: Two 3/4" (19 mm) Diameter Holes Per Fitting
Spacing: Maximum spacing between fittings depends on use and mounting conditions; Hole spacing between Standoffs is 4" (102 mm)
Product Warning:
For Use with 11/16" & 27/32" (17.52mm and 21.52 mm) Laminated Glass Using Kuraray SentryGlas Interlayer. Do not use with raw or annealed glass)
NOTE: Bracket spacing and maximum glass panel widths vary depending on use and mounting conditions.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
