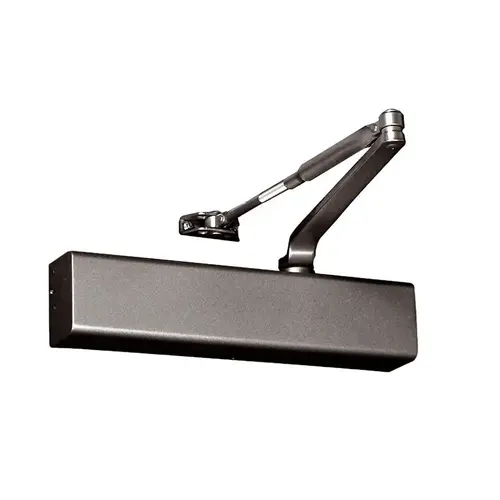

690 Dark Bronze Painted, Slim Cover, Regular Arm, Tri-Packed
3000 SeriesArchitectural Door Closer

Yale 3000 Series Architectural Door Closers offer the perfect combination of reliability, aesthetics and durability in today's market. With features such as staked valves, self-drilling/self-tapping screws, rack and pinion design and precise valve adjustment, and a complete range of arm and cover options, the Yale 3000 Series can meet virtually any application challenge.

Offering sophisticated door control for any upscale commercial application, Yale Works for You℠.

Standard features:

• Exceeds 25 million cycles

• Cast aluminum body

• Adjustable spring sizes 1 through 6

• Tri-packed
• (regular arm, top jamb and parallel arm mounting)

• Non-handed

• Staked valves

• Rack & pinion design

• 1-1/4" (32mm) diameter piston

• 5/8" (16mm) diameter pinion journals

• 2-1/8" (54mm) projection
• (standard covers)

• All standard arm applications (with slim, full or metal covers) allow doors to swing 180 degrees, conditions permitting

Benefits: Slim profile:

• Seamless design blends into any building's aesthetic

Strong & durable:

• ANSI/BHMA Grade 1 certified for long life and reliability

Features: Aluminum Alloy Housing:

• Closer bodies are constructed of a special aluminum alloy, carefully selected to accommodate interactive steel components and operating conditions.

Rack & Pinion Operation:

• Provides a smooth constant control of the door through its full opening and closing cycle. 180° door swing can be achieved when door, frame, hardware and arm function do not interfere.

Non-handed:

• With few exceptions all series and series 3301/3501 door closers are non-handed and can be installed on either right or left hand swing doors. Pinion shaft extends vertically through the closer body in both directions. Some options, as noted on page 5, will require that the hand of the closer be specified.

Sweep Speed Control Valve:

• Allows adjustment of door speed from the door's full open position down to approximately 10° from the closed position.

Latch Speed Control Valve:

• Allows adjustment of door speed from approximately 10° down to the door's fully closed position.

Closer Fluid:

• All door closers are supplied with a temperature stable, multi-viscosity fluid. This fluid will permit the door closer to perform within a wide temperature range: from very high to as low as -40°F.

Tri-Packed:

• 3301/3501 come with screws, brackets and soffit plates to allow for regular, top jamb, and parallel arm installations.

Adjustable Backcheck Valve:

• Provides control of the door in the opening cycle, beginning at approximately 75° of door opening. It cushions the door opening when the door is forcibly opened beyond its pre-adjusted limits.

Standard Molded Covers:

• Molded of high-impact U.L. listed material. Standard covers are non-handed for all applications. See page 5 for optional covers.

Warranty:

• Limited 25-year warranty for defects and life of the building on the aluminum housing.

Finishes: 600*:

• Primed for Painting

605^:

• Bright Brass, Clear Coated

606^:

• Satin Brass, Clear Coated

611^:

• Bright Bronze, Clear Coated

612^:

• Satin Bronze, Clear Coated

613E^:

• Dark Oxidized Satin Bronze - equivalent

625^:

• Bright Chrome Plated

626^:

• Satin Chrome Plated

689:

• Aluminim Painted

690:

• Dark Bronze Painted

691:

• Light Bronze Painted

693:

• Black Painted

694:

• Medium Bronze Painted

696:

• Satin Brass Painted

BSP:

• Black Suede Powder Coat

WSP:

• White Suede Powder Coat

Plated Finishes*: Bright Brass:

• Specify Designation (ANSI/BHMA) - 605
• Metal Covers Only - Yes
• Old Designation - US3

Satin Brass:

• Specify Designation (ANSI/BHMA) - 605
• Metal Covers Only - Yes
• Old Designation - US4

Bright Bronze:

• Specify Designation (ANSI/BHMA) - 611
• Metal Covers Only - Yes
• Old Designation - US9

Satin Bronze:

• Specify Designation (ANSI/BHMA) - 612
• Metal Covers Only - Yes
• Old Designation - US10

Bright Chrome:

• Specify Designation (ANSI/BHMA) - 625
• Metal Covers Only - Yes
• Old Designation - US26

Satin Chrome:

• Specify Designation (ANSI/BHMA) - 605
• Metal Covers Only - Yes
• Old Designation - US26D

• *600 is a special rust-inhibiting prime coat. Closers can be ordered prime coat only (specify closer x 600). An additional charge applies if finish coat is required over prime coat (ex: 3501 x 600 x 689).

• ^ Available on arms only.

• When a plated finish is ordered, arm and cover will be plated unless "cover only" is specified. 3100/3300 - available with plated arm only.
