3-1/2" x 3-1/2" - 1/4" Radius Mortise Hinge Lifetime Satin Nickel Finish

Roll over image to zoom in

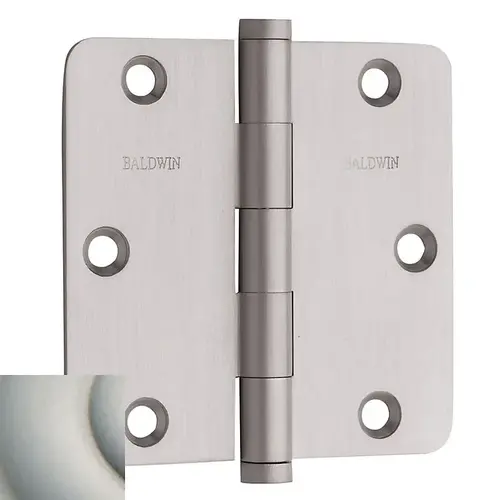

Baldwin 1435056I 3-1/2" x 3-1/2" - 1/4" Radius Mortise Hinge Lifetime Satin Nickel Finish

Item #: 1435056I by Baldwin

See reviewsSee reviews
See reviews summary
In Stock

$37.90

/each
SAVE UP TO 3.79
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 116 units available
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Features
  • 1/4" Radius Corner Hinge
  • Extruded Brass
  • Machined For Precise Installation And Smooth Movement
  • Beveled On The Inside Leaf To Obtain A Tight Fit When Viewing The Hinge In A Closed Position
  • Limited Lifetime Mechanical Warranty and Limited Lifetime Finish Warranty

Material

Brass

Product Class

Residential

Width

3.5

Function

Hinge

Height

3.5

Hinge Height

3.5

Hinge Width

3.5

Mounting Type

Mortise

Number of Holes

6

Number of Knuckles

5

Removable Pin

With Removable Pin

Screw Type

Wood

Theme

Traditional

Corners

1/4" Radius Corner

Door Thickness

1-3/8"

Hinge Type

Plain Bearing

Collection

Estate, General Hardware

Configuration

Hinge

Gauge

0.093

Hinge Strength

Residential

Hole Pattern

Arc

Series

Mortise Hinge

Number of Mounting Holes

6

Hinge Size

3-1/2 x 3-1/2 Inch

Manufacturer Parent

Assa Abloy

Finish Description

Lifetime Satin Nickel

Sub-Series

HP_Residential_Hinges_baldwin_17

ADA Compliant

No

Bearing Type

Plain

Hinge Pin Type

Removable

Product Height

3.5

Box Dimensions (L x W x H)

1 x 2.7 x 4.7

Function Family

Hinge/Pivot

Hinge Corner

1/4 Inch Radius Corner

Product Type

Hinge/Pivot

Features

Furnished With Stainless Steel; Precise Installation and Smooth Movement

Product Material

Brass

Color Code

056

Included Components

Flat Head-Phillips Wood Screws

Finish Family

Satin Nickel

Finish

Lifetime Satin Nickel

Dimension

3-1/2" x 3-1/2"

Pin Type

Removable Pin

Manufacturer Warranty

Limited Lifetime Mechanical Warranty and Limited Lifetime Finish Warranty

Knuckles

5 Knuckles

Tip Style

Button Tips

Corner Type

1/4" Radius Corner

Hazardous Material

No

Finish code

056

Design

1/4" Radius

No of inners

1

Product Overview
Baldwin 1/4" Radius Corner 3.5" x 3.5" Solid Brass Plain Bearing Mortise Hinge - Single HingeBaldwin's top of the line hinges set industry standards for excellence. These elegant hinges are available in several finishes to discretely accent your home while bringing the dependable performance you need.Manufactured from solid brass extrusions for both exceptional strength and precision tolerances, Baldwin hinges are individually machined from a solid brass bar resulting in a high quality hinge with increased wear performance. Each hinge is beveled on the inside leaf to obtain a perfect fit when closed.Plain Bearing Hinge: Plain bearing hinges feature knuckles that are machined to a smooth surface, allowing them to move against one another without bearings. Plain bearing hinges are not recommended for heavy use on high traffic entrance ways, but meet the need of a standard residential door.Material - Solid Brass: Solid brass is made from copper and zinc and is prized for its resilience, durability, and beauty. Solid brass can always be polished back to its original sheen and is highly resistant to rusting. Solid brass is often available in finishes that other hinge materials are not.Mounting: The standard corners for mortised door hinges are 1/4" radius, 5/8" radius and square corner. It is recommended that three hinges be used on doors up to and including 7.5 feet with one additional hinge for each additional 2.5 feet. Make sure you check your current hinges before making a purchase.There are brand names, and then there is Baldwin. Constantly building and re-building upon a time tested legacy of superior design, craftsmanship, functionality and innovation, Baldwin Hardware has delivered modern luxury to discriminating homeowners, architects and designers since 1946. From being the first to forge solid brass door hardware to setting precedence for Lifetime Finishes, Baldwin has been and always will be synonymous with revolutionary technology and unsurpassed quality. Aspire to make your home much more than mere shelter, and relax in the assurance that function and elegance can finally flourish within the same line of fine products—Baldwin can show you how.
