This CRL Commercial Heavy-Duty Automatic, Surface Mount, Door Bottom is mechanically actuated. An internal carrier bar with a vinyl insert drops from a concealed cavity to form a tight seal between the base of the door and the threshold. It is ideal for use where carpeted interiors require the door bottom to retract when the door is opened. Supplied with a frame "actuator" protector plate, the door bottom is field reversible for either "hand" of door.
Actuation of the inner drop down bar only functions properly when this door bottom is installed on the door. Testing by hand before installation will only drop the back of the bar. Proper function only occurs when the back edge (near the hinge side) drops down onto the sill. Once the back of the bar makes contact, the front edge will drop, creating the seal. At this time, adjustments can be made to the threaded hex plunger by backing out the plunger to increase the seal pressure against the sill.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

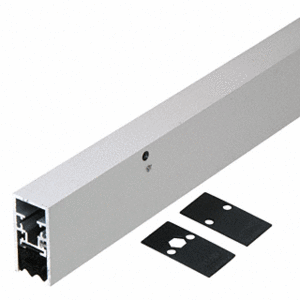

CRL 75NGA36 36" Commercial Heavy-Duty Automatic Door Bottom Aluminum
Item #: 75NGA36 by CR Laurence
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Can be Trimmed 2" Shorter
- Field Reversible
- Surface Mount Installation
Finish
Aluminum
Length
36
Width
15/16
Finish/Color
Aluminum
Automatic Door Bottom
Yes
Full Height
1-3/4"
Product Overview
This CRL Commercial Heavy-Duty Automatic, Surface Mount, Door Bottom is mechanically actuated. An internal carrier bar with a vinyl insert drops from a concealed cavity to form a tight seal between the base of the door and the threshold. It is ideal for use where carpeted interiors require the door bottom to retract when the door is opened. Supplied with a frame "actuator" protector plate, the door bottom is field reversible for either "hand" of door.
Actuation of the inner drop down bar only functions properly when this door bottom is installed on the door. Testing by hand before installation will only drop the back of the bar. Proper function only occurs when the back edge (near the hinge side) drops down onto the sill. Once the back of the bar makes contact, the front edge will drop, creating the seal. At this time, adjustments can be made to the threaded hex plunger by backing out the plunger to increase the seal pressure against the sill.
