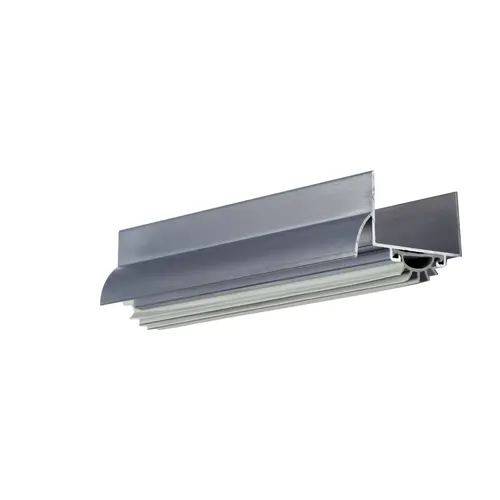

Pemko 216AV36 36" Door Shoe with Vinyl Mill Finish Aluminum Finish 216AV36

Item #: 216AV36 by Pemko

Brand: Pemko

UPC #: 086787601784

11 reviews
See reviews summary
In Stock

$25.48

/each
SAVE UP TO 2.55
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 499 units available

Finish: Mill Finish Aluminum

Length: 36"

32"
36"
42"
48"
72"

Insert: Vinyl

PemkoPrene
Vinyl
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
  • Pemko Products Provide an Energy Efficient Door Solution
  • Fasteners: Sheet Metal Screws
  • AWS_QUICKSHIP: Yes
  • Pemko Products Undergo Rigorous Testing to Ensure That They Meet or Exceed the Industry Standards
  • Pemko Offers Many Fabrication Options to Fit Specific Job Requirements
  • Mounting Hardware Included
  • Limited 5 Year Warranty

Series

216 Series

Finish

Mill Finish Aluminum

Finish Description

Painted White Aluminum

Product Type

Door Accessory

Insert

Vinyl

Door Thickness

1-3/4"

Size

1-9/16" x 1-3/4"

Width

1-3/4"

Length

36"

For Use With

Architectural Doors

Warranty

5 Year

Function

Door Bottom Shoe

Product Height

1-9/16 Inch

Product Length

36 Inch

Product Width

1-5/16 Inch

ADA Compliant

No

Finish Family

Aluminum

Insert Type

Eco-V Insert

Product Material

6063-T6 Aluminum Alloy

Standards

ANSI/BHMA A156.21; Fire Rated - UL10C; Smoke Tested - UL1784; Underwriters Laboratory 4L10; GREENGUARD Gold Certified

Insert Color

Gray

Manufacturer Parent

Assa Abloy

Height Beneath Door

1/2 Inch

Sub-Series

DTA_Thresholds_Door_Bottoms_pemko_72

Alternate Part Number-1

129354

Height

2

Projection

1/2"

Material

Anodized Aluminum and Vinyl

FLANGE LENGTH

36"

Manufacturer Warranty

Limited 5 Year Warranty

Hazardous Material

No

Flange Thickness

1-3/4"

Finish code

A

Flange width

1-5/16"

Flange Material

Anodized Aluminum

Insert Material

Vinyl

No of inners

1

ANSI/BHMA Standards

ANSI/BHMA A156.21, Fire Rated - UL10C, Smoke Tested - UL1784, Underwriters Laboratory 4L10, GREENGUARD Gold Certified

Substrate Type

Aluminum

Product Dimension

H: 1-9/16" , W: 1-5/16"

Product Overview

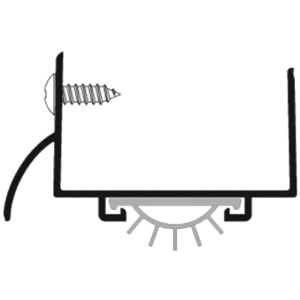

36" Door Shoe With Rain Drip in Mill Finish Aluminum with Gray Eco-V Insert
Slotted Holes For Easy Adjustment, Provided with Stainless Steel Fasteners
This product is subject to a manufacturer’s surcharge based on import tariffs
