CRL Jackson® Model 2086 Concealed Vertical Rod Panic Exit Devices are UL Listed - Certified ANSI 156.3 Grade 1, and manufactured in the Jackson tradition of high quality and durability. Suitable for use with narrow, medium and wide stile aluminum doors, these devices are handed - not reversible, and feature dual point hex bolt latching, concealed easy-to-use push button dogging, "Soft Touch" smooth quiet action push pad, and quick and easy installation. They are available in Dark Bronze and Satin Aluminum anodized finishes. Standard devices come in two lengths for 36" and 48" wide doors, and can be cut down to custom fit an opening (consult CRL Jackson® Technical Sales). For doors over 84" order Top Rod Extender: 12" 301347 or 24" 301348. Devices may be ordered with optional Cylinder Dogging, which uses a 1-1/8" Mortise Cylinder such as DC7185SCKASC, ordered separately. Keyed entry may be provided by ordering and installing a standard 1" Mortise Cylinder such as DL2170SCKDA with AR MS type cam, along with a Cylinder Mounting Pad such as 30821J628. Keyed access is also available with Jackson Model 8500LV Outside Lever Trim such as 8500LV02628.
SPECIFICATIONS:
Standard for 36" (914 mm) Wide Door Field Sizeable up to 48" (1.22 m) Width Available
Concealed Easy-to-Use Dogging System Optional Cylinder Dogging is Available
Wear Points Insulated by Nylon Sleeves and Rollers
2086 Concealed Vertical Rod Device Top Bolt
Top and Bottom Bolt Action 1/2" (13 mm) Throw
Standard Height 84" (2.13 m)
Requires Mortise Cylinder and Series 30821J Mounting Pad for Keyed Entry
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

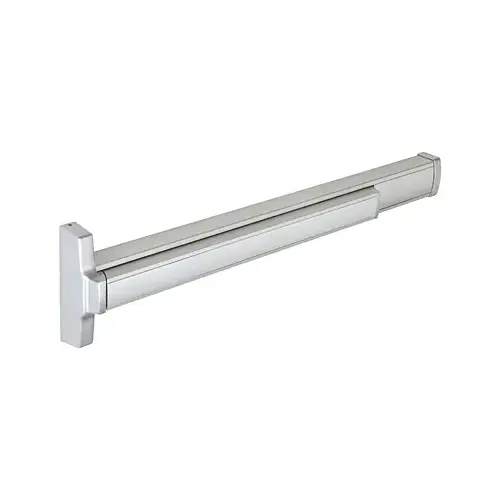

Jackson 312086L37628 36" Model 2086 Concealed Vertical Rod Panic Exit Device Left Hand Reverse Bevel Fits 3/0 x 7/0 Door Aluminum Finish
Item #: 312086L37628 by Jackson
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Designed for Use with 1-3/4" (44 mm) Narrow, Medium, and Wide Stile Aluminum, Wood, or Hollow Metal Doors
- Complies with ANSI 156.3, Grade 1 Specifications
- Concealed Fastening for Added Security
- Can Be Cut to Size
Brand
Jackson
Handing
Left Hand Reverse Bevel
Size
36
Color
Aluminum
Type
Concealed Vertical Rod
Finish
Aluminum
Certification
ANSI 156.3, Grade 1
Finish/Color
Aluminum
Series
Jackson 2086 Concealed Vertical Rod Panics
Application
Narrow, Medium and Wide Stile Doors
Length
3
Hand
Left Hand Reverse
Function
Exit Only
Device Length
36 Inch (3 Foot)
Stile
Narrow, Medium or Wide
Door Height
7 Inch, 1-1/8 Inch x 2-1/4 Inch, Square Corner.
Fire Rated
No
Finish Description
Satin Aluminum
Device Type
Concealed Vertical Rod Device
Dogging Options
Hex Key Dogging
ADA Compliant
No
Finish Family
Aluminum
Standards
ANSI A156.3; UL305 Listed
Device Rating
Panic Exit Hardware
For Door Height
7 Foot
For Door Thickness
1-3/4 Inch
Function Family
Exit Only Device
Features
Dual Point Latching
Product Type
Exit Device
Door Material
Aluminum, Wood; Hollow Metal
Manufacturer Parent
CRH
Sub-Series
EDT_Concealed_Ver_Rod_Devices_CRL_Jackson_1
Product Overview
CRL Jackson® Model 2086 Concealed Vertical Rod Panic Exit Devices are UL Listed - Certified ANSI 156.3 Grade 1, and manufactured in the Jackson tradition of high quality and durability. Suitable for use with narrow, medium and wide stile aluminum doors, these devices are handed - not reversible, and feature dual point hex bolt latching, concealed easy-to-use push button dogging, "Soft Touch" smooth quiet action push pad, and quick and easy installation. They are available in Dark Bronze and Satin Aluminum anodized finishes. Standard devices come in two lengths for 36" and 48" wide doors, and can be cut down to custom fit an opening (consult CRL Jackson® Technical Sales). For doors over 84" order Top Rod Extender: 12" 301347 or 24" 301348. Devices may be ordered with optional Cylinder Dogging, which uses a 1-1/8" Mortise Cylinder such as DC7185SCKASC, ordered separately. Keyed entry may be provided by ordering and installing a standard 1" Mortise Cylinder such as DL2170SCKDA with AR MS type cam, along with a Cylinder Mounting Pad such as 30821J628. Keyed access is also available with Jackson Model 8500LV Outside Lever Trim such as 8500LV02628.
SPECIFICATIONS:
2086 Concealed Vertical Rod Device Top Bolt
