Pemko 4301CRL 36 36" Surface Mounted Automatic Door Bottom with EPDM Clear Aluminum Finish Clear Anodized Aluminum 4301CRL36

Item #: 4301CRL 36 by Pemko

See reviewsSee reviews
See reviews summary
In Stock

$142.38

/each
SAVE UP TO 14.24
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 17 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Pemko Products Provide an Energy Efficient Door Solution
  • BHMA Grade: Grade 1
  • Fasteners: Sheet Metal Screws
  • Pemko Products Undergo Rigorous Testing to Ensure That They Meet or Exceed the Industry Standards
  • Pemko Offers Many Fabrication Options to Fit Specific Job Requirements
  • Mounting Hardware Included
  • Limited 5 Year Warranty

Finish

Clear Anodized Aluminum

Series

Door Bottoms

Length

36"

Width

29/32"

Size

29/32" X 1-25/32"

Insert Color

Black

Manufacturer Parent

Assa Abloy

Finish Description

Clear Anodized Aluminum

For Use With

Architectural Doors

Product Width

29/32 Inch

Function

Automatic Door Bottom

Sub-Series

4301CRL-36

ADA Compliant

No

Product Height

1-25/32 Inch

Standards

Air Infiltration Tested ASTM E-283-04; Sound Tested ASTM E90; BHMA Certified ANSI/BHMA A156.22; Smoke Tested UL 1784; NFPA 105-2013; Fire Rated UL10B, UL10C Positive Pressure

Insert Replacement Part Number

E4303

Product Type

Door Accessory

Features

Recommended Gap Under Door is 1/2"; Maximum Drop is 3/4"; For Semi Mortised Applications

Product Material

6063-T6 Aluminum Alloy

Product Length

36 Inch

Warranty

5 Year

Insert Type

Sponge EPDM Insert

Finish Family

Aluminum

Bristle Length

1.7813

Insert Material

Aluminum

Length (Inch)

36

Overall Length (Inch)

36

PSC Code

5640

Vendor Drop Ship

N

No of inners

1

Flange Material

Anodized Aluminum

Flange width

1-25/32"

Finish code

C

Flange Thickness

29/32"

Hazardous Material

No

Manufacturer Warranty

Limited 5 Year Warranty

FLANGE LENGTH

36"

Material

Anodized Aluminum and Sponge EPDM

Product Overview

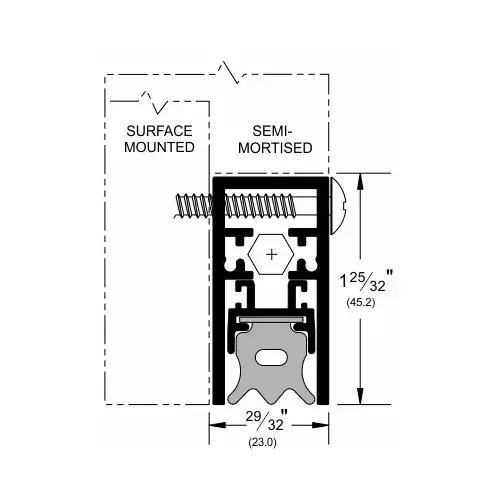

36" Surface or Semi-Mortised Mounted Automatic Door Bottom in Clear Anodized Aluminum with EPDM Insert
