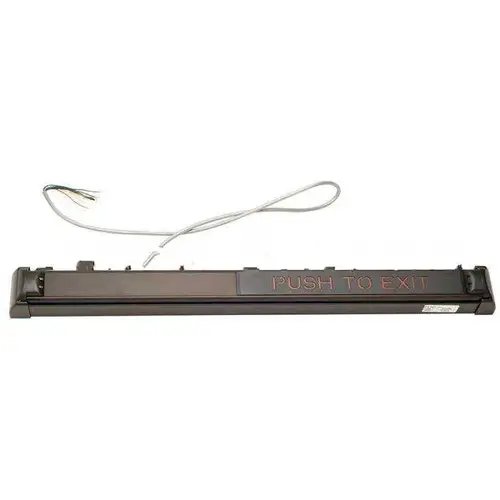

Schlage Electronics 69236313Click To Copy 36" Touch SmartBar for Aluminum; Hollow Metal; and Wood Doors Dark Bronze Finish

692 SeriesSmartBarTM

The 692 SmartBar is an electronic switching device with no moving parts, which serves as a non-latching request-to-exit device. It allows one motion egress at doors equipped with an electronic locking device, most commonly an electromagnetic lock, with "no prior knowledge" required by the user. Touching the SmartBar at any point on the bar activates internal circuitry which controls power to the locking device. No moving parts results in low maintenance and long life.

The 692 SmartBar provides two directionally opposed infrared detection circuits to sense an exit request. As a person touches the bar, the light beam is broken. The patentpending redundant system provides a high level of life safety and peace of mind to the end user.

An audible alarm is standard. This feature provides a security alarm to alert when there is a prolonged unlocked condition caused by a continued break in the light beam. This feature is desirable in applications requiring monitoring of security conditions or delayed egress.

Features and benefits:

• Dual Infrared detection circuits, patent-pending

• No moving parts – one motion egress

• Audible alarm standard, alerts prolonged unlock condition

• Standard Double Pole, Double Throw switch utilized

• Patent-pending infrared detection along bar releases locking device when light beam is broken

• One motion egress when installed with electromagnetic or electrified locks

• Large "PUSH TO EXIT" lettering provides obvious exit indication with glow-in-thedark option

• Low profile provides ample clearance through the door

• Audible alarm is standard

• Left- or right-hand reverse (field reversible)

• Field sized or orderable for 36", 42" or 48" doors

• For aluminum, hollow metal and wood doors

• No moving parts for low maintenance and long life

• Heavy-duty aluminum extrusion with cast metal end caps for maximum durability

• Quick installation brackets/universal mounting system

Specifications: Input voltage:

• 12 or 24 VDC maximum current draw .5 amps

Switch:

• DPDT contacts rated 4 amps @ 30 VDC

Wiring:

• 8 conductor cable - 20 AWG (standard)

Door size:

• 36", 42" or 48"

Finishes:

• 628 - Satin anodized aluminum (standard)
• 313 - Dark satin bronze anodized aluminum

Handing:

• RHR - Right hand reverse
• LHR - Left hand reverse - field reversible

• Note: 18" x 1/2" armored door cord shipped standard.
