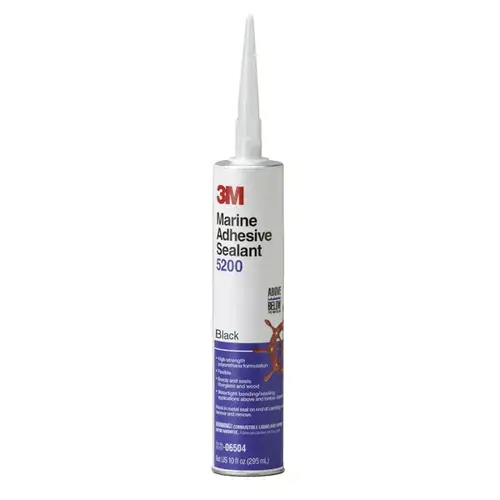

3M 6504 0 5200 Series Marine Adhesive Sealant, 295 mL Cartridge, Medium Paste, Black, 5 days Curing
Item #: 6504 by 3M
UPC #: 051135065044
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Permanent bonding above and below the waterline
- Industry standard for over 50 years
- Offers extended working time
- Achieves handling strength in 48 hr
- Tough and flexible polyurethane polymer forms strong bonds
- Capable of retaining strong bonds during vibration, swelling, shrinking or shock
- Above and below waterline use, permanent bond
Component
1K
Color/Finish
Black
MFR Model
6504
Application Time
48 hr
Part no.
06504
Temperature Rating (deg F)
-40 to 190
Curing Time
5 days
Container Type
Cartridge
Composition
40 to 70% Urethane Pre-Polymer, 10 to 30% Limestone, 5 to 10% Carbon Black, 1 to 5% Diethylene Glycol Monoethyl Ether Acetate, 1 to 5% Fumed Silica, 0.5 to 1.5% Alkyl Isocyanate Silane, <0.5% Toluene, Diisocyanate, <0.3% Heptane, <0.2% (Gamma-Mercaptopropyl)Trimethoxysilane
Application
For fiberglass deck to hull, through hull fittings, wood to fiberglass, portholes and deck fittings, motors on fiberglass transoms, under moldings, hull seams above and below water line, deck housing
Standard/Approvals
California Pro65 Warning: Cancer and Reproductive Harm
Form
Medium Paste
Specific Gravity
1.36
Setting Time
30 hr
Container Size (mL)
295
Applicable Materials
Fiber Reinforced Plastic, Gelcoat, Glass, Metal, Most Plastics, Wood
Series
5200
Tensile Strength
705 psi
Color
Black
Package Size
10 fl oz
CureTime
5 days
Maximum Operating Temperature
+190 °F
Minimum Operating Temperature
-40 °F
Product Form
Paste
Chemical Base
Polyurethane
Hazardous Shipping
NOT REGULATED
Shore Hardness
68 Shore A
Exact Fixture Time
30 hr
Returnable
Yes
Defective Code
A
Number in Package
1 pk
Container Size
10 oz
Packaging Type
Tube
Fast Cure
5200FC
Product Type
Marine Adhesive Sealant
Each Weight
0.960 LB
Velocity
A
Hazardous Material
No
Alternative UPC
60980109353
Material
Polyurethane
Product Overview
3M™ Marine adhesive sealant 5200 is a one-component, high strength, moisture curing, gap filling polyurethane for permanent bonding of wood, gel coat and fiberglass. It cures to form a firm, rubbery, waterproof seal on joints and boat hardware, above and below the waterline. This product has been trusted throughout the marine industry for over 50 years. Forming watertight seals, 3M™ marine adhesive sealant 5200 offers permanent adhesion to wood, gel coat and fiberglass. In addition, our marine adhesive sealant is flexible and allows for structural movement and dissipation of stress that may be caused by vibration, swelling, shrinking or shock. Available in both cartridge and sausage packs to meet your application requirements.
3M 5200 black Marine adhesive/sealant is compatible with abs, acrylic, fiberglass, metal, nylon, plastic and wood materials with a 5 day cure time. Provides a 30 hr fixture time. Delivers great performance with a shear strength of 538 psi and tensile strength of 705 psi. Minimum to maximum operating temperatures are -40 F to +190 F. Comes in a 10 fl oz Cartridge. This adhesive/sealant is packaged 12 per case. Specifications
Specifications:
Specification parameters description:
Chemical Base:
Chemical base is the primary substance in the product. Adhesives with methacrylate bases are used in structural bonding applications and work well with tough-to-bond materials. Silicone-based adhesives are extremely flexible and ideal in high-heat environments. Epoxy-based adhesives are available with different resins and hardeners to bond effectively with a broad range of materials.
Material Compatibility:
Material compatibility lists which materials the product fills. Acrylic adhesives are suitable for use on a wide range of materials including wood, ceramic, fiberglass, metal, and plastic. Contact adhesive is typically used on wood, drywall, concrete, and vinyl. Methacrylate adhesives are compatible with metal, acrylic, PVC, and gelcoat. In addition to material compatibility, other factors may determine the best type of adhesive for a certain application such as brittleness, flexibility, and the adhesive?s resistance features.
Cure Time:
Cure time is the length of time it takes for the adhesive to completely dry or harden. Different cure times may determine the best application method of the adhesive. Since most polyurethane adhesives cure quickly, dispensing machines are ideal in these applications. Light curing adhesives require light sources within specific wavelengths to cure where the strength of the light source affects cure time. Depending on the particular adhesive, temperature and humidity greatly increases or decreases the actual cure time. Many acrylic adhesives cure quicker than epoxies.
Exact Fixture Time:
Fixture time refers to how much time the product can be repositioned or handled after application and before it reaches full cure. Fixture times vary depending on the application and size of the object. Fixture time is also referred to as green time, set time, and time to handling strength.
3M 5200 black Marine adhesive/sealant is compatible with abs, acrylic, fiberglass, metal, nylon, plastic and wood materials with a 5 day cure time. Provides a 30 hr fixture time. Delivers great performance with a shear strength of 538 psi and tensile strength of 705 psi. Minimum to maximum operating temperatures are -40 F to +190 F. Comes in a 10 fl oz Cartridge. This adhesive/sealant is packaged 12 per case. Specifications
Specifications:
3M Number: 5200
Material Compatibility:
- ABS
- Acrylic
- Fiberglass
- Metal
- Nylon
- Plastic
- Wood
No Sale States: CA
Required Applicator: Caulk Gun
Restriction States: CA
Series: Marine
Shear Strength: 538 psi
Shelf Life: 24 mo
Storage Condition:
- Keep in Cool and Dry Place
- Store Between 60°F to 80°F
Viscosity Measurement: 100000 to 500000 cPs
Specification parameters description:
Chemical Base:
Chemical base is the primary substance in the product. Adhesives with methacrylate bases are used in structural bonding applications and work well with tough-to-bond materials. Silicone-based adhesives are extremely flexible and ideal in high-heat environments. Epoxy-based adhesives are available with different resins and hardeners to bond effectively with a broad range of materials.
Material Compatibility:
Material compatibility lists which materials the product fills. Acrylic adhesives are suitable for use on a wide range of materials including wood, ceramic, fiberglass, metal, and plastic. Contact adhesive is typically used on wood, drywall, concrete, and vinyl. Methacrylate adhesives are compatible with metal, acrylic, PVC, and gelcoat. In addition to material compatibility, other factors may determine the best type of adhesive for a certain application such as brittleness, flexibility, and the adhesive?s resistance features.
Cure Time:
Cure time is the length of time it takes for the adhesive to completely dry or harden. Different cure times may determine the best application method of the adhesive. Since most polyurethane adhesives cure quickly, dispensing machines are ideal in these applications. Light curing adhesives require light sources within specific wavelengths to cure where the strength of the light source affects cure time. Depending on the particular adhesive, temperature and humidity greatly increases or decreases the actual cure time. Many acrylic adhesives cure quicker than epoxies.
Exact Fixture Time:
Fixture time refers to how much time the product can be repositioned or handled after application and before it reaches full cure. Fixture times vary depending on the application and size of the object. Fixture time is also referred to as green time, set time, and time to handling strength.
