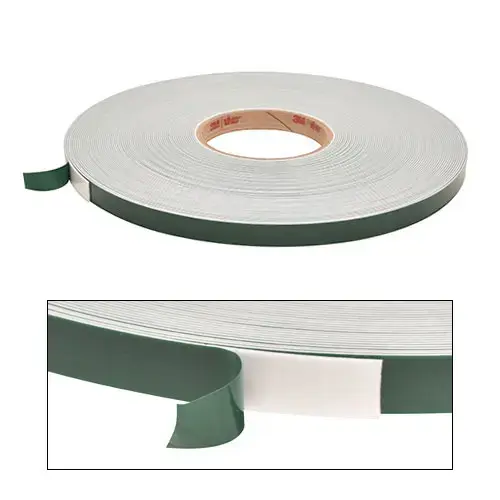

CRL 3M VHB Tape can replace mechanical fasteners such as rivets, spot welds, screws, and liquid adhesives. VHB Tape has successfully replaced all these and other fasteners in various manufacturing uses. It bonds to many substrates, and can be used for interior or exterior industrial applications. VHB Tape eliminates drilling for mechanical fasteners, and mixing of liquid adhesives. It applies neatly and easily, conforms to irregular surfaces, and allows concealment in use. Excellent resistance to ultraviolet light, solvents, moisture and plasticizer migration.
Best adhesion is achieved when applied at temperatures above 70 degrees Fahrenheit (16 degrees Celsius) with adequate initial hand or roller pressure. Also, when surfaces are cleaned with a solution of isopropyl alcohol and water. CRL 3M VHB Tape achieves 50 percent strength in 20 minutes, 90 percent strength in 24 hours and full strength in 72 hours.
SPECIFICATIONS:
Foam: Closed Cell Acrylic
Release liner: Paper
Color: White
Thickness: .045" (1.1 mm)
Peel Adhesion to stainless steel: Excellent - 25 lb./inch
Tensile Adhesion to aluminum: Very Good - 140 psi
Dynamic Shear Adhesion to Stainless Steel: Good - 80 psi
Static Shear Adhesion:
At Room Temperature - Very Good
At 200 Degrees Fahrenheit (93 degrees Celsius) - Good
Shelf Life:
12 Months at Room Temperature of 70 Degrees Fahrenheit (16 Degrees Celsius)
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Bonds to Many Substrates
- Can be Used for Interior or Exterior Industrial Applications
- Super Adhesive, High Bonding Strength Tape Can Replace Rivets, Screws, Spot Welds, and Liquid Adhesives
Feet per Roll
108 ft (33 m)
Thickness of Tape
1/16 in (1.59 mm) .062 in
Width of Tape
1/2 in (13 mm)
Width
1/2" (12 mm)
Roll Length
108' (33 m)
Thickness
0.045
Brand
3M
Finish
White
Type
VHB
Finish/Color
White
Length (Feet)
108
Length
108 ft.(33 m)
Product Overview
CRL 3M VHB Tape can replace mechanical fasteners such as rivets, spot welds, screws, and liquid adhesives. VHB Tape has successfully replaced all these and other fasteners in various manufacturing uses. It bonds to many substrates, and can be used for interior or exterior industrial applications. VHB Tape eliminates drilling for mechanical fasteners, and mixing of liquid adhesives. It applies neatly and easily, conforms to irregular surfaces, and allows concealment in use. Excellent resistance to ultraviolet light, solvents, moisture and plasticizer migration.
Best adhesion is achieved when applied at temperatures above 70 degrees Fahrenheit (16 degrees Celsius) with adequate initial hand or roller pressure. Also, when surfaces are cleaned with a solution of isopropyl alcohol and water. CRL 3M VHB Tape achieves 50 percent strength in 20 minutes, 90 percent strength in 24 hours and full strength in 72 hours.
SPECIFICATIONS:
Static Shear Adhesion:
Shelf Life:
