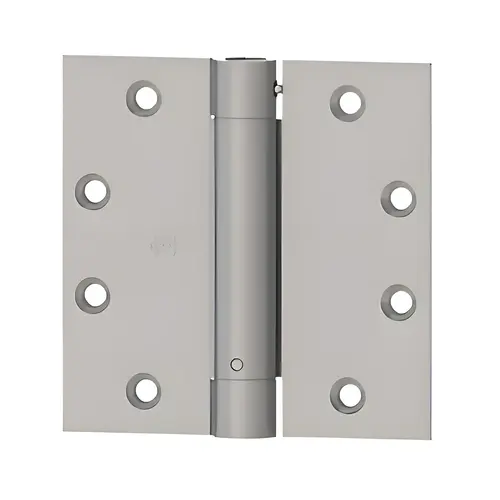

Hager 140419 1250 4-1/2" x 4-1/2" Full Mortise Single Acting Square Corner Spring Hinge 1 Each Per Box, Oil Rubbed Bronze Finish
Item #: 140419 by Hager
UPC #: 798550404194
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Full Mortise Spring Hinge
- Provide Maximum Versatility
- Ideal For Strong Wind Conditions, Draft, Carpeting Drag, Or Doors With Weatherstripping
- Non-Removable Pin
- Steel With Steel Components
Finish
Oil Rubbed Bronze
Design
Square Corner
Series
Hager Commercial Hinge Series
Material
Steel with Steel Components
Knuckles
3
Fastenersize-Wood
#12 x 1-1/4"
HINGE WIDTH in. - COMMERCIAL
4-1/2
HINGE MISC.
NOT APPLICABLE
HINGE HEIGHT in. - COMMERCIAL
4-1/2
HINGE FINISHES - COMMERCIAL
4-1/2
HINGE TYPE - COMMERCIAL
NO BEARING / NOT APPLICABLE
HINGE PACKING AND FASTENERS
1 EACH PER BOX
HINGE LEAF
STANDARD
HINGE TIPS
STANDARD
Product Overview
Full Mortise, Spring Hinge, Standard Weight, Square Corner
Notes:
Certifications:
ANSI K81071F
Finishes:
USP, US3, US4, US10, US10A, US10B, US26D
Options:
Notes:
Notes:
- UL approved for use on doors 4'0" x 8'0", but Hager does not recommend using spring hinges on doors over 7'0" in favor of hydraulic door closers.
- For maximum versatility use all spring hinges or a combination of spring hinges and ball bearing or anti-friction hinges. Do not use plain bearing hinges. Strong wind conditions, drafts, carpeting drag, twisted/misaligned frames, or weatherstripping on doors may require additional spring hinges. Full spring tension may not be required on all hinges.
- Doors over 3'0" x 7'0" or over 100 lbs require three spring hinges. Doors 150-180 lbs require four spring hinges.
Certifications:
ANSI K81071F
Finishes:
USP, US3, US4, US10, US10A, US10B, US26D
Options:
- Available with hospital tip (HT) - voids UL.
- Available with raised barrel (RBB/RBS) - UL approved.
Notes:
- UL approved for use on doors 4'0" x 8'0", but Hager does not recommend using spring hinges on doors over 7'0" in favor of hydraulic door closers.
- For maximum versatility use all spring hinges or a combination of spring hinges and ball bearing or anti-friction hinges. Do not use plain bearing hinges. Strong wind conditions, drafts, carpeting drag, twisted/misaligned frames, or weatherstripping on doors may require additional spring hinges. Full spring tension may not be required on all hinges.
- Doors over 3'0" x 7'0" or over 100 lbs require three spring hinges. Doors 150-180 lbs require four spring hinges.
