Features
- Constructed from stainless steel with a stainless steel pin and a satin stainless steel finish for a clean, neutral appearance.
- Measures 4" x 4" with a .085" gauge and a .234" pin diameter, suitable for standard residential door hinge applications.
- Features a 5-knuckle, ball-bearing design with 1/4" radius round corners for smooth door movement and easy installation.
- Includes a non-removable pin for enhanced security and is fully reversible for versatile door mounting configurations.
- Conforms to the light weight requirements of ANSI A156.1 and holds an ANSI A5114 certification for residential hardware.
- Designed for use in screen, patio, and storm door applications, providing reliable support for residential door systems.
- Supplied as a 2-pack with 3/4" x 9" flat head wood fasteners included for immediate installation on residential door frames.
Finish
Satin Stainless Steel
Series
Hager Commercial Hinge Series
Packaging
2 pack with fasteners
Material
Stainless Steel with Stainless Steel Pin
Knuckles
5
Pin Diameter
.234"
Fastenersize-Wood
3/4" x 9" FH
Size
- 3-1/2" X 3-1/2"
- 4" X 4"
Gauge
.085"
Notes
- Hager residential hinges are provided without lubrication. We recommend lubricating the hinges after installation.
- All residential hinges conform to the "Light Weight" requirements of ANSI A156.1.
HINGE WIDTH in. - RESIDENTIAL
4
Fastener Size - Wood
3/4" x 9" FH
HINGE HEIGHT in. - RESIDENTIAL
4
HINGE TIPS
STANDARD
Dimension
4" x 4"
Pin Type
Removable Pin
Hinge Type
Full Mortise Hinge
Manufacturer Warranty
Limited Lifetime Warranty and 1 Year Finish Warranty
Bearing Type
Ball Bearing
Tip Style
Button Tips
Corner Type
1/4" Radius Corner
Hazardous Material
No
Finish code
US32D
No of inners
1
Product Overview

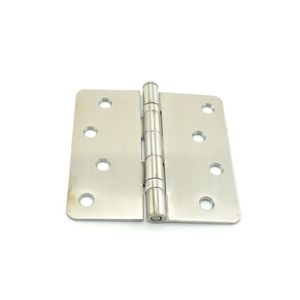

Satin Stainless Steel hinge is a 5-knuckle, ball-bearing residential hinge designed for standard door applications. Constructed from stainless steel with a stainless steel pin, this hinge provides a consistent finish for various door hardware setups. It features a 1/4" radius round corner design and a non-removable pin for added security. The hinge measures 4" x 4" with a gauge of .085" and a pin diameter of .234". This model conforms to the light weight requirements of ANSI A156.1 and carries an ANSI A5114 certification. The hinge is reversible, allowing for flexible installation on different door configurations. Each package includes a 2-pack of hinges with 3/4" x 9" flat head wood fasteners. Please note that these hinges are provided without lubrication, and it is recommended to lubricate them after installation to maintain smooth operation. The satin stainless steel finish offers a clean, neutral aesthetic suitable for residential screen, patio, and storm doors.
