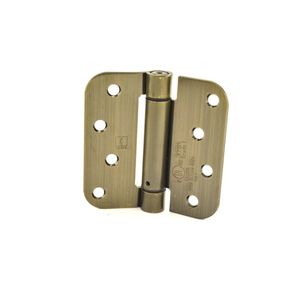

1752 4" x 4" 5/8" Radius Corner Steel Full Mortise Residential Spring Hinge, Antique Brass Finish

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Hager 170461 1752 4" x 4" 5/8" Radius Corner Steel Full Mortise Residential Spring Hinge, Antique Brass Finish

Item #: 170461 by Hager

Brand: Hager

UPC #: 798550704614

See reviewsSee reviews
See reviews summary
In Stock

$15.50

32.34 /each
SAVE UP TO 1.55
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 514 units available

Finish: Antique Brass

Size: 4" x 4"

3 1/2" x 3 1/2"
4" x 4"

Pack: each

pack of 2
each
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
  • Spring Hinge
  • 5/8" Radius Corners
  • Staggered Hole Pattern
  • Steel
  • Adjustable Tension

Finish

Antique Brass

Design

5/8" Radius Corner

Series

Hager Commercial Hinge Series

Packaging

2 pack with screws

Material

Steel

Fastenersize-Wood

3-1/2" - 3/4 X 9. 4" - 1 X 9.

Size

  • 3-1/2" X 3-1/2"
  • 4" X 4"

Gauge

0.097

Maximum Door Weight

45-70 lbs.

HINGE WIDTH in. - RESIDENTIAL

4

Fastener Size - Wood

3-1/2" - 3/4 X 9. 4" - 1 X 9.

HINGE HEIGHT in. - RESIDENTIAL

4

HINGE FINISHES - RESIDENTIAL

ABA - ANTIQUE BRASS

Dimension

4" x 4"; 5/8" Radius Corners

Pin Type

Spring Pin

Hinge Type

Spring Hinge

Manufacturer Warranty

Limited Lifetime Warranty and 1 Year Finish Warranty

Bearing Type

Spring Bearing

Knuckles

3 Knuckles

Corner Type

5/8" Radius Corner

Hazardous Material

No

Finish code

US5

No of inners

1

ANSI/BHMA Standards

ANSI K81071F

Corner Style

5/8" Radius Corner

Substrate Type

Steel

Features

Full Mortise, Spring Hinge, 5/8" Round Corner Radius, Standard Weight

Duty Level

Medium Duty

Size

4" x 4"

Product Overview
Round Corners 5/8" Radius, Spring Hinge with Fasteners
Notes:
  • For maximum versatility use all spring hinges or a combination of spring hinges and ball bearing hinges. Do not use plain bearing hinges.
  • Full spring tension may not be required on all hinges.
  • Strong wind conditions, drafts, carpeting drag, twisted/mi

Certifications:
  • BHMA Certified, ANSI 4156.17, Grade 1
  • ANSI K51071F

Features:
Round corners - 5/8" (16 mm) radius
Finishes:
1D, 2D, 3LB, 10R, US10A, US15, US26, US26D, US3, US4, US5/ABA, US15A/AN, USP
Notes:
  • For maximum versatility use all spring hinges or a combination of spring hinges and ball bearing hinges. Do not use plain bearing hinges.
  • Full spring tension may not be required on all hinges.
  • Strong wind conditions, drafts, carpeting drag, twisted/mi
