1251 4" x 4" Full Mortise Single Acting 1/4" Radius Corner Spring Hinge Flat Black Finish Prime Coat Paint

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

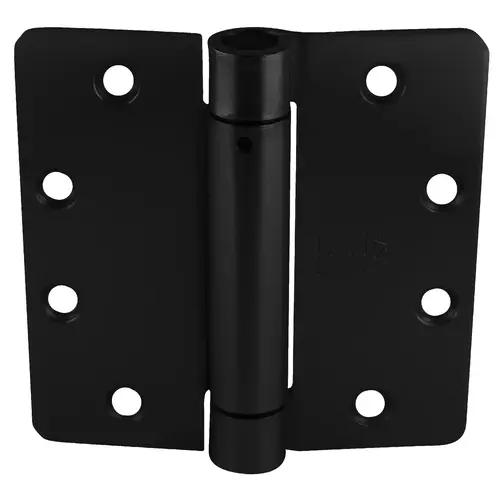

Hager 063419 1251 4" x 4" Full Mortise Single Acting 1/4" Radius Corner Spring Hinge Flat Black Finish Prime Coat Paint

Item #: 063419 by Hager

UPC #: 041359634195

See reviewsSee reviews
See reviews summary
In Stock

$24.42

/each
SAVE UP TO 2.44
Buying in bulk

QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • 1/4" Radius Corners
  • Non-Removable Pin
  • Arc Hole Pattern
  • Wood And Machine Screws Included
  • ANSI K81071F
  • For Maximum Versatility, Use All Spring Hinges or a Combination of Spring and Ball Bearing Hinges

Finish

Flat Black

Series

Hager Commercial Hinge Series

Design

Radius Corner

Material

Steel with Steel Components

Knuckles

3

Fastenersize-Wood

12 x 1-1/4"

HINGE WIDTH in. - COMMERCIAL

4

HINGE HEIGHT in. - COMMERCIAL

4

Fastener Size - Machine

12-24 x 1/2"

HINGE FINISHES - COMMERCIAL

4

HINGE TYPE - COMMERCIAL

NO BEARING / NOT APPLICABLE

Fastener Size - Wood

12 x 1-1/4"

HINGE PACKING AND FASTENERS

STANDARD

HINGE LEAF

STANDARD

Dimension

4" x 4"

Pin Type

Spring Pin

Hinge Type

Spring Hinge

Manufacturer Warranty

Limited Lifetime Warranty and 1 Year Finish Warranty

Bearing Type

Spring Bearing

Corner Type

1/4" Radius Corner

Hazardous Material

No

Finish code

L1

No of inners

1

Product Overview
Full Mortise, 1/4" Round Corner Radius, Spring Hinge, Standard Weight
Notes:
  • Hager does not recommend using spring hinges on doors over 7'0".
  • Strong wind conditions, drafts, carpeting drag, twisted/misaligned frames, or weatherstripping on doors may require additional spring hinges.
  • For maximum versatility, use all spring hinges or a combination of spring and ball bearing hinges. Do not use plain bearing hinges.

Certifications:
ANSI K81071F
Finishes:
USP, US3, US4, US10, US10A, US10B, US26D
Notes:
  • Hager does not recommend using spring hinges on doors over 7'0".
  • Strong wind conditions, drafts, carpeting drag, twisted/misaligned frames, or weatherstripping on doors may require additional spring hinges.
  • For maximum versatility, use all spring hinges or a combination of spring and ball bearing hinges. Do not use plain bearing hinges.
