4" x 4" Ball Bearing Mortise Square Hinge Vintage Brass Finish

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

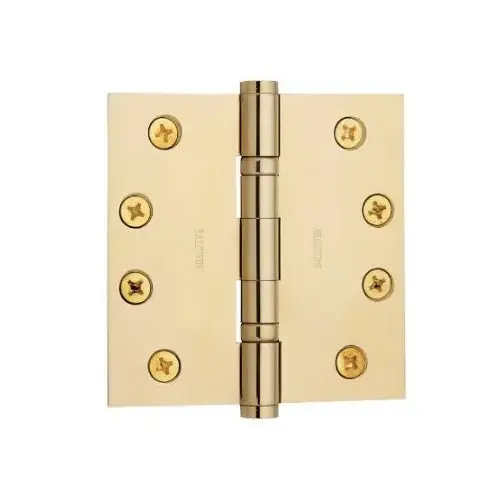

Baldwin 1041033I 4" x 4" Ball Bearing Mortise Square Hinge Vintage Brass Finish

Item #: 1041033I by Baldwin

UPC #: 884011114396

See reviewsSee reviews
See reviews summary
In Stock

$71.41

/each
SAVE UP TO 7.14
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 339 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Ball Bearing Hinge, 4" X 4"
  • Extruded Brass
  • Machined For Precise Installation And Smooth Movement
  • Equipped With Two Non-Detachable Ball Bearings To Withstand Greater Load Capacity And Increase Hinge Life
  • Limited Lifetime Mechanical Warranty and No Finish Warranty

Material

Brass

Height

4

Approved for Commercial Use

Yes

Product Class

Residential

Function

Residential Hinge

Mounting Type

Mortise

Number of Knuckles

5

Removable Pin

With Removable Pin

Screw Type

Wood

Theme

Traditional

Hinge Height

4

Hinge Width

4

Number of Holes

8

Width

4

Corners

Square Corner

Door Thickness

1-3/4"

Collection

Estate, General Hardware

Configuration

Hinge

Gauge

0.13

Hinge Strength

Residential

Hinge Type

Full Mortise

Hole Pattern

Arc

Series

1041 Series

Finish

Vintage Brass

Finish Description

Antique Brass

Product Type

Hinge/Pivot

Product Height

4

Included Components

Mounting Hardware

Hinge Size

4 x 4 Inch

Product Material

Brass

Pin Type

Non-Removable

Mount

Full Mortise

Bearing Type

Ball

ADA Compliant

No

Finish Family

Antique Brass

Number of Mounting Holes

8 Foot (96 Inches)

Fastener Size

#12 x 1-1/4" FH

Hinge Corner

Square Corner

Function Family

Hinge/Pivot

Features

Extruded Brass; Machined for Precise Installation and Smooth Movement; Furnished With Stainless Steel, Rust-Proof Pins for Added Durability; Two Non-Detachable Ball Bearings to Withstand Greater Load Capacity and Increase Hinge Life

Manufacturer Parent

Spectrum

Box Dimensions (L x W x H)

1.2 x 2.7 x 5.2

Sub-Series

HP_Residential_Hinges_baldwin_11

Dimension

4" x 4"

Manufacturer Warranty

Limited Lifetime Mechanical Warranty and No Finish Warranty

Knuckles

5 Knuckles

Tip Style

Button Tips

Corner Type

Square Corner

Hazardous Material

No

Finish code

033

Design

Square

No of inners

1

Product Overview
  • Ball Bearing Hinge, 4" x 4"
  • Extruded brass
  • Machined for precise installation and smooth movement
  • Beveled on the inside leaf to obtain a tight fit when viewing the hinge in a closed position
  • Furnished with stainless steel, rust-proof pins for added durability
  • Equipped with two non-detachable ball bearings to withstand greater load capacity and increase hinge life
  • Ball Bearing hinges are always recommended for doors equipped with door closers and/or receiving average frequency service
  • Packed 1 per box, each hinge poly-bagged with fasteners
  • Supplied with #12 x 1.25" Flat Head-Phillips wood screws
