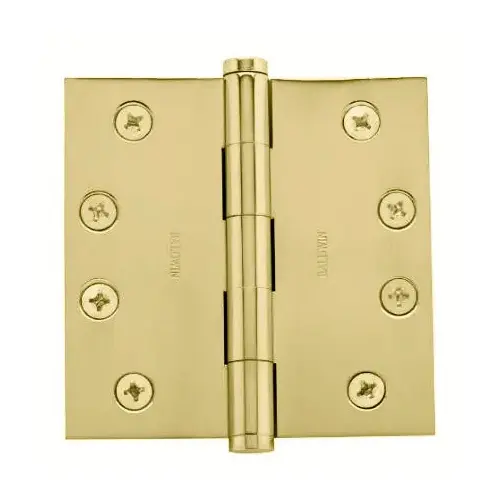

Baldwin 1040031I 4" x 4" Mortise Square Hinge Unlacquered Brass Finish
Item #: 1040031I by Baldwin
UPC #: 723079042213
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Square Corner 4" X 4" Hinge
- Extruded Brass
- Machined For Precise Installation And Smooth Movement
- Furnished With Stainless Steel, Rust-Proof Pins For Added Durability
- Limited Lifetime Mechanical Warranty and No Finish Warranty
Collection
Estate, General Hardware
Configuration
Hinge
Corners
Square Corner
Door Thickness
1-3/4"
Function
Residential Hinge
Gauge
0.13
Height
4
Hinge Height
4
Hinge Strength
Residential
Hinge Type
Full Mortise
Hinge Width
4
Hole Pattern
Arc
Material
Brass
Mounting Type
Mortise
Number of Holes
8
Number of Knuckles
5
Product Class
Residential
Removable Pin
With Removable Pin
Screw Type
Wood
Series
1040 Series
Theme
Traditional
Width
4
Finish
Non Lacquered Brass
Finish Description
Non-Lacquered Brass
Product Type
Hinge/Pivot
Product Height
4
Included Components
Mounting Hardware
Hinge Size
4 x 4 Inch
Product Material
Brass
Mount
Full Mortise
Pin Type
Removable
Bearing Type
Plain
ADA Compliant
No
Finish Family
Brass
Number of Mounting Holes
8 Foot (96 Inches)
Fastener Size
#10 x 1" FH
Hinge Corner
Square Corner
Function Family
Hinge/Pivot
Features
Beveled on the Inside Leaf to Obtain a Tight Fit When Viewing the Hinge in a Closed Position; Extruded Brass; Machined for Precise Installation and Smooth Movement; Furnished With Stainless Steel, Rust-Proof Pins for Added Durability
Manufacturer Parent
Spectrum
Box Dimensions (L x W x H)
1 x 2.7 x 5.2
Sub-Series
HP_Residential_Hinges_baldwin_10
Dimension
4" x 4"
Manufacturer Warranty
Limited Lifetime Mechanical Warranty and No Finish Warranty
Knuckles
5 Knuckles
Tip Style
Button Tips
Corner Type
Square Corner
Hazardous Material
No
Finish code
031
Design
Square
No of inners
1
Product Overview
- Square Corner Hinge, 4" x 4"
- Extruded brass
- Machined for precise installation and smooth movement
- Beveled on the inside leaf to obtain a tight fit when viewing the hinge in a closed position
- Furnished with stainless steel, rust-proof pins for added durability
- Packed 1 per box, each hinge poly-bagged with fasteners
- Supplied with 8 - #10 Flat Head-Phillips wood screws
