Qty
+
$328.98   /each

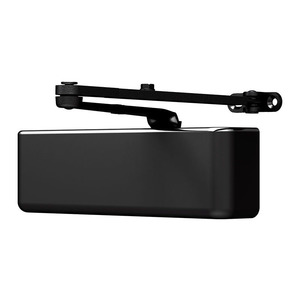

LCN 4040XP-REG BLACK Door Closer Black Painted

  • 44% increased bearing load capacity
  • Strongest pinion ever- at 3/4” journal diameter
  • Widest bearing ever- at 5/8”
  • Stronger pinion teeth
  • New V-shield™ seal with 20% longer life
  • XP = eXtra Protection in real world applications
  • Cast Iron
  • Forged Steel Arm
  • Double Heat Treated Steel Pinion
  • All Weather Fluid
  • Non-Handed
  • LCN® Fast™ Power Adjust
  • Fast & Accurate Installation
  • UL & cUL Listed
  • Tested and certified under ANSI Standard A156.4, grade one
  • Non-sized cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0”
  • Closer can mount hinge side, top jamb, or parallel arm (with PA bracket) on either right or left swinging doors
  • Closers to meet ADA requirements
  • Standard or optional custom powder coat finish
  • Optional plated finish on metal cover, arm and fasteners
  • Optional SRI primer for installations in corrosive conditions is available with powder coat only
  • UL and cUL listed for self-closing doors without hold-open
  • 4040XP can be used with all 4040 accessories
See Full Product Description

Additional options:

SALE

$328.98 /each

Qty

In Stock
Quick Shipping

Usually ships in 1 business day*

Additional options:

SALE
+
In Stock Quick Shipping

Usually ships in 1 business day*

Have a Question?

Chat with our Expert


Description

  • 44% increased bearing load capacity
  • Strongest pinion ever- at 3/4” journal diameter
  • Widest bearing ever- at 5/8”
  • Stronger pinion teeth
  • New V-shield™ seal with 20% longer life
  • XP = eXtra Protection in real world applications
  • Cast Iron
  • Forged Steel Arm
  • Double Heat Treated Steel Pinion
  • All Weather Fluid
  • Non-Handed
  • LCN® Fast™ Power Adjust
  • Fast & Accurate Installation
  • UL & cUL Listed
  • Tested and certified under ANSI Standard A156.4, grade one
  • Non-sized cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0”
  • Closer can mount hinge side, top jamb, or parallel arm (with PA bracket) on either right or left swinging doors
  • Closers to meet ADA requirements
  • Standard or optional custom powder coat finish
  • Optional plated finish on metal cover, arm and fasteners
  • Optional SRI primer for installations in corrosive conditions is available with powder coat only
  • UL and cUL listed for self-closing doors without hold-open
  • 4040XP can be used with all 4040 accessories

  • Product Description
  • Technical Details 5
  • Product Reviews 1
  • Product Q&A 1
  • Large Order Quote
  • Shipping / Return Policy

Product Description

Grade

Grade 1

Application

Regular Arm

Cover

Plastic

Case Qty

4

Type

Surface

Hand

Non-Handed

Color

Black Painted

Color Code

693

Case Length

16.5"

Screw Type

Self Tapping

Mounting Style

Regular

Hold Open

No

Arm Type

Regular Arm

Fire Rated

3 Hours {A}

Origin

USA

Closer Size

Non-Sized

BAA Qualified

Yes

Package Height

4.5"

Package Length

16"

Package Volume

306

Package Width

4.25"

Back Check

Adjustable

Case Height

9.25"

Case Volume

1488.09375

Case Width

9.75"

Degree Swing

120¼

Delay

No

Mounting Location

Push or Pull Side

Package Qty

1

Product Height

3.75"

Product Length

12"

Product Width

2.25"

Restrictions

None

Special Marks

Fire rated 3 Hours {A}

Special Rust Inhibitor

No

Through Bolts

No

  • 44% increased bearing load capacity
  • Strongest pinion ever- at 3/4” journal diameter
  • Widest bearing ever- at 5/8”
  • Stronger pinion teeth
  • New V-shield™ seal with 20% longer life
  • XP = eXtra Protection in real world applications
  • Cast Iron
  • Forged Steel Arm
  • Double Heat Treated Steel Pinion
  • All Weather Fluid
  • Non-Handed
  • LCN® Fast™ Power Adjust
  • Fast & Accurate Installation
  • UL & cUL Listed
  • Tested and certified under ANSI Standard A156.4, grade one
  • Non-sized cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0”
  • Closer can mount hinge side, top jamb, or parallel arm (with PA bracket) on either right or left swinging doors
  • Closers to meet ADA requirements
  • Standard or optional custom powder coat finish
  • Optional plated finish on metal cover, arm and fasteners
  • Optional SRI primer for installations in corrosive conditions is available with powder coat only
  • UL and cUL listed for self-closing doors without hold-open
  • 4040XP can be used with all 4040 accessories

Regular Arm Door Closer, Black Painted

The 4040XP is LCN's most durable and flexible heavy duty closer designed for institutional and other demanding high traffic applications. Featuring a cast iron body, forged steel arm, double heat treated steel pinion, and all weather fluid. The non-sized cylinder is adjustable for interior doors to 5'0" and exterior doors to 4"0". Closers meet ADA requirements, are UL and cUL listed for self-closing doors without hold open and are tested and certified under ANSI Standard A156.4, Grade 1.

Durable, heavy duty closer designed for the most demanding, high use and abuse applications.

The LCN 4040XP sets a new standard for reliability, longevity and value with a beefier design and extraordinary performance testing that goes far beyond industry requirements. LCN built the 4040XP from the inside out, combining tougher, bolder construction with proven LCN technology. The result is a closer that's stronger, smarter and delivers remarkable value in a variety of applications.
