Adams Rite 4085-02-IB Positioner Header Bolt 52" - 67" Individually Boxed

4085Header Bolt

4085 Header Bolt provides top-of-door third locking point for pairs of doors when working in conjunction with an MS® pivoted bolt deadlock and 4015 Threshold Bolt in the active leaf.

Function:

• Designed to add a top-of-door third locking point for pairs of doors when used in conjunction with a pivoted bolt MS® deadlock and 4015 Threshold Bolt in the active leaf

• The 4085 Header Bolt is mounted in the inactive leaf

• This additional bolt, triggered bythe pivoted MS® bolt, expands in a scissor-like action to center itself in its strike as it rises. This action saves the key holder from the difficulty of lining up the doors with three separate strikes, even if doors are misaligned due to faulty installation or settling

• The 4085 Header Bolt can be added to any basic MS1850S, MS1850SN, MS1950 Series deadlock with the 4015 Threshold Bolt for a Maximum Security three-point locking solution

Specifications: Header Bolt:

• 1/2" x 1 1/2" (12.7 mm x 38.1 mm) expanding bolt with 5/8" (15.9 mm) throw. Housed in 1 1/2" x 2 3/4" x 5/8" (38.1 mm x 69.9 mm x 15.9 mm) case.

Adjustment:

• Minor adjustment of rod length is accomplished by turning nylon rod end.

Standard Package:

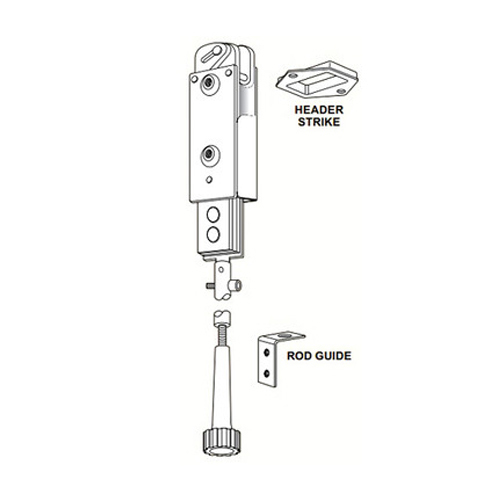

• Packed separately with rod guide, screws, and header strike

Compatible Products:

• MS1850S, MS1850S-050, MS1850SN, MS1850SN-050, MS1950, MS1950-050 Series DeadlocksNot applicable to 7/8" backset locks.
