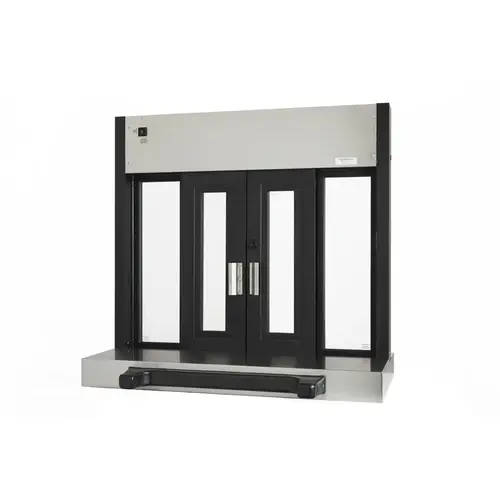

Quikserv FM-9607-BX Fully Automatic Bi-Parting Pass-Thru Electric Slider Window Flush Mount 42" W x 40" H Dark Bronze Anodized
Item #: FM-9607-BX by QuikServ
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Ideal for a tight drive-thru, a food truck, or any other application where a projected window is not possible
- As the windows do not stick out, there is no obstruction caused by the window
- The bottom sill of the unit has a slight downward gradient to provide protection against rain, sleet, and snow
Height
40"
Finish
Dark Bronze Anodized
Service Opening
15-1/2" x 27"
Rough Opening
42-1/2" x 40-1/2"
Width
42"
Type
Flush Mount
Size
42" x 40"
Glazing
STANDARD GLAZING 1/4″ Clear Tempered Safety Glass OPTIONAL GLAZING This can also be glazed with bullet resistant, tinted glass, insulated units and Low-E. Speak to us about your unique project requirements!
Shipping
Pallet
Boxed Size
59" x 48" x 28"
Boxed Weight
177 lbs.
Standard Features:
- Shipped fully assembled and ready to install
- Warranty backed with Nationwide Service Centers
- 1/4" clear tempered safety glass
- Weather-resistant and sealed to protect from the elements
- Dark bronze or clear anodized aluminum
- Corrosion-resistant material: Anodized aluminum and #304-#3 finish stainless steel
- Security locking systems
- Easy manual operation upon power failure
- Maximum security hook-bolt locks
- ETL listed
Optional Features:
- Custom colors available
- Reduced service openings for areas requiring 432 sq. inches
- Custom transoms and overall window sizes
- Various glazing options (B/R, Insulated, Tinted, etc)
- Electric auto locks
- Automatically lock when unit is closed
- Constructed with high-visibility, bullet-resistant materials (Level 1)
Security Features:
- Includes two easy to grab handle and thumb turn adams-rite lock to ensure the window can be locked securely after hours
