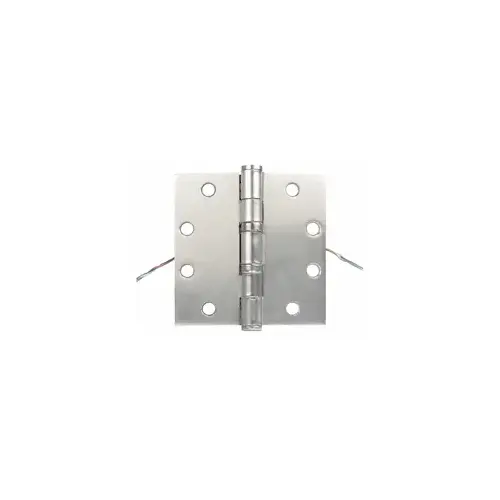

Securitron EH-40 4.5" x 4" Electric Hinge Concealed 6 Wire Satin Stainless Steel Finish
Item #: EH-40 by SECURITRON
Brand: Securitron
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Transfer Power With the Highest Level of Concealment
- Produces the Most Aesthetically Pleasing Appearance
- 500mA Power Capability
- 6 Conductor, 28 Gauge Wire
- MagnaCare, The Best Warranty in the Industry, Lifetime Replacement, No Fault, No Questions Asked
Finish
Satin Stainless Steel
Base Material
Stainless Steel
Mounting Style
Square
Product Length
4.5"
BAA Qualified
Yes
Origin
USA
Color Code
630/US32D
ANSI Number
156.7
Package Qty
1
Product Height
0.134"
Restrictions
None
Special Marks
Fire rated 3 Hours {A}
Fire Rated
3 Hours {A}
Tip Style
Standard
Width
4 In.
Burglar Rated
No
Product Width
4"
Height
4-1/2 In.
Knuckles
5
Power Transfer
6-28GA
Package Volume
0
Product Type
Touch Sense Bar
Alternate Part Number-1
176914
Product Overview
Power Transfer Hinge, 5 Wire, 4-1/2 In. by 4 In.28 Guage Wire, Satin Chrome
The EH is an efficient, discreet, concealed solution that provides secure power and data transfer from frame to door when streamlined wiring is needed. Each hinge features concealed plug connectors that eliminate separate or exposed wiring. Ultimate concealment for tamper-resistance. 6 conductor, 28 gauge wire with 6" pigtail provided for connections.
Power transfers help to assist in the secure transfer of power and data.
