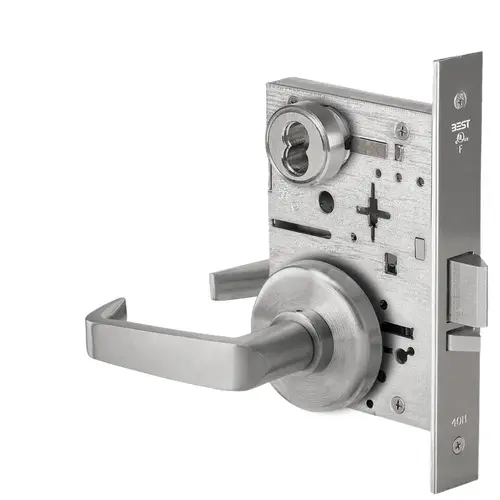

BEST 45H7AT15H626 Mortise Lock Satin Chrome
Item #: 45H7AT15H626 by BEST
In Stock $952.39 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Meets the intent of the standard for ANSI A117.1 section 404.2.6
- Auxiliary bolt: Stainless steel, non-handed.
- Backset: 2 3 /4”
- Case: 0.095” cold rolled steel, 5 7 /8” H x 7 /8” D x 4 1 /16” W. Steel is zinc dichromate plated for corrosion protection.
- Deadbolt: Stainless steel, 1” throw.
- Latchbolt: Solid stainless steel, 3 /4” throw. Latch is oil-impregnated for anti-friction operation. Reversible without opening case.
Thickness
1-3/4"
Strike Number
40HST1
Package Volume
336.375
Color
Satin Chrome
Case Width
10.5"
Function
AT-Office
ANSI Function
F04 - Entry/Office
Hand
Field Reversible
Grade
Grade 1
Fire Rated
3 Hours {A}
Special Marks
Small format interchangeable core, Fire rated 3 Hours {A}, Complies with ADA accessibility guidelines
Package Length
11.5"
Lever/Knob Design
15 - Lever
Strike Height
4-7/8"
Rose/Escutcheon Design
H - Rose
BAA Qualified
Yes
Origin
USA
Strike Type
ASA
Color Code
626/US26D
Case Volume
1639.96875
Bolt Protection
3/4" Latch
Package Width
9.75"
Case Height
12.25"
Screws
Combination
Package Height
3"
Package Qty
1
Case Length
12.75"
Lock Face Size
8" x 1-1/4"
Cylinder Type
SFIC Prep Less Core
Strike Width
1-1/4"
Dust Box
Plastic
Office, Mortise Lock, 15 Lever, H Rose, Satin Chrome
The BEST 40H Series Mortise Lock has advanced features, improved functionality and unique versatility. This durable mortise lock is reliable and flexible in any commercial or industrial setting. Heavy duty in both protection and performance, the 40H is the ideal security solution when strength and dependability are required. Free egress and overall security are never compromised. All the while, the 40H Series remains a low maintenance product that is easy to reconfigure and install.
The 45H Series is heavy duty in both protection and performance.
The Best 45H Series is the ideal security solution when strength and dependability are required. Free egress and overall security are never compromised. The BEST interchangeable core allows for customized master keying and quick keying changes.
