BEST 45H7D3H630 Mortise Lock Satin Stainless Steel

Item #: 45H7D3H630 by BEST

See reviewsSee reviews

$952.39

/each
SAVE UP TO 95.24

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Meets the intent of the standard for ANSI A117.1 section 404.2.6
  • Auxiliary bolt: Stainless steel, non-handed.
  • Backset: 2 3 /4”
  • Case: 0.095” cold rolled steel, 5 7 /8” H x 7 /8” D x 4 1 /16” W. Steel is zinc dichromate plated for corrosion protection.
  • Deadbolt: Stainless steel, 1” throw.
  • Latchbolt: Solid stainless steel, 3 /4” throw. Latch is oil-impregnated for anti-friction operation. Reversible without opening case.

Grade

Grade 1

Thickness

1-3/4"

Hand

Field Reversible

Color

Satin Stainless Steel

Color Code

630/US32D

Case Length

12.75"

Function

D-Storeroom

Cylinder Type

SFIC Prep Less Core

Fire Rated

3 Hours {A}

Origin

USA

BAA Qualified

Yes

Package Height

3"

Package Length

11.5"

Package Volume

336.375

Package Width

9.75"

ANSI Function

F07 - Storeroom/Exit

Bolt Protection

3/4" Latch

Case Height

12.25"

Case Volume

1639.96875

Case Width

10.5"

Dust Box

Plastic

Lever/Knob Design

3 - Lever

Lock Face Size

8" x 1-1/4"

Package Qty

1

Rose/Escutcheon Design

H - Rose

Screws

Combination

Special Marks

Small format interchangeable core, Fire rated 3 Hours {A}, Complies with ADA accessibility guidelines

Strike Height

4-7/8"

Strike Number

40HST1

Strike Type

ASA

Strike Width

1-1/4"

Product Overview

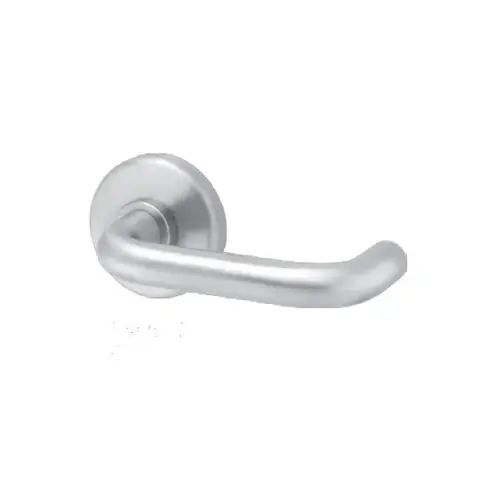

Storeroom, Mortise Lock, 3 Lever, H Rose, Satin Stainless Steel

The BEST 40H Series Mortise Lock has advanced features, improved functionality and unique versatility. This durable mortise lock is reliable and flexible in any commercial or industrial setting. Heavy duty in both protection and performance, the 40H is the ideal security solution when strength and dependability are required. Free egress and overall security are never compromised. All the while, the 40H Series remains a low maintenance product that is easy to reconfigure and install.

The 45H Series is heavy duty in both protection and performance.

The Best 45H Series is the ideal security solution when strength and dependability are required. Free egress and overall security are never compromised. The BEST interchangeable core allows for customized master keying and quick keying changes.
