Features
- Meets the intent of the standard for ANSI A117.1 section 404.2.6
- Auxiliary bolt: Stainless steel, non-handed.
- Backset: 2 3 /4”
- Case: 0.095” cold rolled steel, 5 7 /8” H x 7 /8” D x 4 1 /16” W. Steel is zinc dichromate plated for corrosion protection.
- Deadbolt: Stainless steel, 1” throw.
- Latchbolt: Solid stainless steel, 3 /4” throw. Latch is oil-impregnated for anti-friction operation. Reversible without opening case.
Package Length
11.5"
Strike Height
4-7/8"
BAA Qualified
Yes
Origin
USA
Strike Type
ASA
Color Code
605/US3
Case Volume
1639.96875
Bolt Protection
3/4" Latch
Package Width
9.75"
Case Height
12.25"
Screws
Combination
Package Height
3"
Package Qty
1
Case Length
12.75"
Lock Face Size
8" x 1-1/4"
Strike Width
1-1/4"
Dust Box
Plastic
Special Marks
Fire rated 3 Hours {A}, Complies with ADA accessibility guidelines
Fire Rated
3 Hours {A}
Grade
Grade 1
Hand
Field Reversible
ANSI Function
F04 - Entry/Office
Function
A-Office
Case Width
10.5"
Color
Bright Brass
Package Volume
336.375
Strike Number
40HST1
Thickness
1-3/4"
Finish
605 - Bright Brass
Faceplate
8" H x 1-1/4" W x 1/16" T
Backset
2-3/4"
Handing
Right Hand Reverse Bevel (RHRB)
Keyed
Yes
Electronic
No
Lock Type
Mortise
Duty Level
Heavy Duty
7/8" Lip to Center Strike
Yes
Security Head Screws
Yes
Standard Cylinder
SFIC Prep Less Core
Product Overview

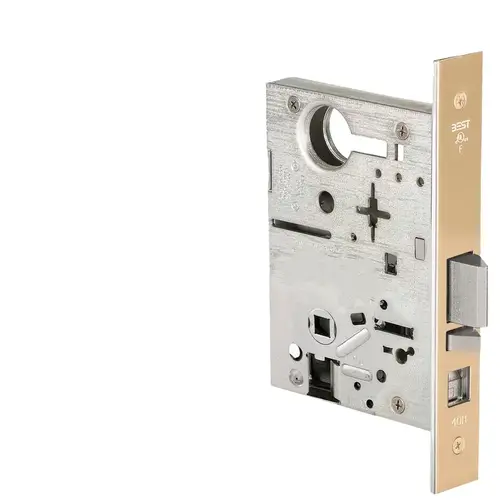

Office Lock Body Only, Mortise Lock, Bright Brass
The BEST 40H Series Mortise Lock has advanced features, improved functionality and unique versatility. This durable mortise lock is reliable and flexible in any commercial or industrial setting. Heavy duty in both protection and performance, the 40H is the ideal security solution when strength and dependability are required. Free egress and overall security are never compromised. All the while, the 40H Series remains a low maintenance product that is easy to reconfigure and install.
The 45H Series is heavy duty in both protection and performance.
The Best 45H Series is the ideal security solution when strength and dependability are required. Free egress and overall security are never compromised. The BEST interchangeable core allows for customized master keying and quick keying changes.
