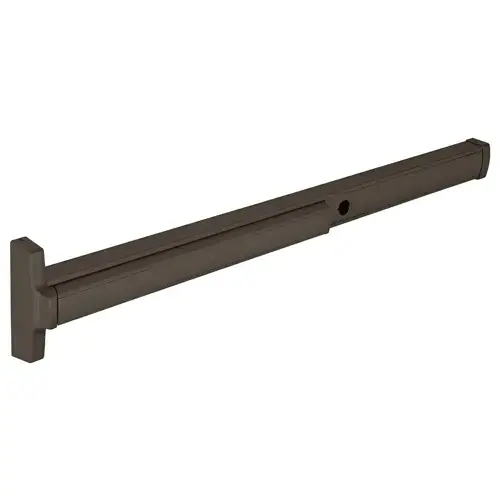

Jackson 312085CL47313 48" 2085 Concealed Vertical Rod Grade 1 Exit Device with Top Latch and Bottom Bolt, Cylinder Dogging, LHRB, Dark Bronze
Item #: 312085CL47313 by Jackson
Item Discontinued! See reviews See
reviews
The item is currently out of stock and it may or may not be restocked
OUT OF STOCK
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Durable, ANSI 156.3 Grade 1 Tested to Over 500,000 Cycles
- Easy Underside Push-Button Dogging Standard. Cylinder Dogging, and Front Hex Key Dogging Available
- No "Pinch Points" and low Projection for Barrier-Free Compliance
- Remarkably Quiet, Smooth Reliable Operation
- Secure Two-Point Latching: Top Latch, Bottom Bolt
Brand
Jackson
Size
48" (1.22 m)
Handing
Non Handed
Type
Concealed Vertical Rod with Top Latch
Finish
Dark Bronze
Handed
Left
The CRL Jackson® 2085 is a Grade 1 Concealed Vertical Rod Exit Device for use with narrow, medium and wide stile aluminum and hollow metal doors. It has a secure two point latching system with a top latch and bottom bolt and is noted for its remarkably quiet, smooth, reliable operation. It comes standard with a 301311 rocker-type latch and is available with a pullman-type latch, item 302775.
The panic can be sized down to an overall length of 30" and when used with the 301347 or 301348 rod extenders, is suitable for 8' or 9' tall doors. For outside entry, use a 1" mortise cylinder with an MS type cam such as the DL2170SCKD and the 30821J mortise cylinder mounting pad. For the cylinder dogging, use a 1-1/8" cylinder with a removable cam that has a standard "cross" hole pattern. The proper cam is supplied with the device.
