CRL Jackson Model 2095 Rim Latch Panic Devices are UL Listed Certified ANSI 156.3 Grade 1, and manufactured in the Jackson tradition of high quality and durability. They are designed to withstand the rigors of today s world yet remain aesthetically pleasing. Suitable for use with narrow, medium and wide stile aluminum doors, as well as wood and hollow metal doors, these devices are handed - not reversible, and feature concealed easy-to-use push button dogging, a 3/4" (19 mm) throw deadlocking latch bolt, "Soft Touch" smooth quiet action push pad, and quick and easy installation. Available in Dark Bronze and Satin Aluminum anodized finish, this device comes standard with Type 'C' Strike #302436628, and may be ordered with optional Type 'S' Strike #302501628. Keyed entry may be provided by ordering and installing a standard Rim Cylinder such as DL911SCKDA, or a Jackson Outside Lever Trim Model 9500LV using a 1" Mortise Cylinder (sold separately). For wood door application order optional Wood Door Mounting Kit #302521. For double doors, use with Jackson Mullion 3089620958313.
SPECIFICATIONS:
2095 Rim Device
Requires Rim Cylinder for Keyed Entry
Cylinder Mounting Pad Not Required
3/4" (19 mm) Throw Deadlocking Latch
MATERIALS:
Body and Push Pad: Extruded Aluminum
Mechanical Components: Stainless and Hardened
Plated Steel
Latch and Strikes: Sintered Steel
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

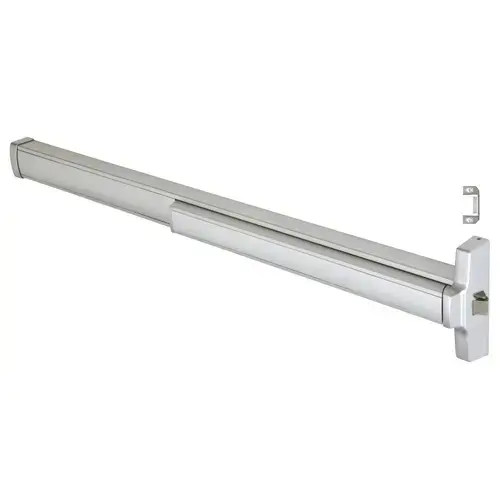

Jackson 312095RC4628 48" Model 2095 Grade 1 Rim Latch Panic Exit Device Right Hand Reverse Bevel with 'C' Strike 4 Foot Aluminum Finish
Item #: 312095RC4628 by Jackson
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Designed for Use with Narrow, Medium and Wide Stile Aluminum Doors, as Well as Wood and Hollow Metal Doors
- Complies with ANSI 156.3, Grade 1 Specifications
- Concealed Fastening for Added Security
- Can Be Cut to Size
Size
48" (1.22 m)
Brand
Jackson
Finish
Aluminum
Handed
Right
Certification
ANSI/BHMA 156.3
Finish/Color
Aluminum
Series
20
Panic Bar Width Net
46 1/2
Push Pad Width
23.5
Material - Mechanical Components
Stainless and Hardened Plated Steel
Recommended Door Type
Aluminum Narrow,Medium,Wide Stile, Wood,Hollow Metal
Minimum Stile Width (Inches)
1-3/4
Material - Housing
Aluminum
Panic Bar Base Height (Inches)
2-7/8
Panic Type
Rim
Replacement Parts
DL911SCKDA,DL2170SCKDA,302989628
Material - End Cap
Aluminum
Material - Latch & Strike
Sintered Steel
Panic Head Height (Inches)
7-5/16
Panic Bar Projection (Inches)
3
Panic Dogging
Push Button
Handing
Right Hand Reverse Bevel (RHR)
Model
2095
Door Thickness
1-3/4
Door Width
48
UL Listed
Yes
Includes
Mounting Hardware
Application
Narrow; Medium and Wide Stile Aluminum; Wood or Hollow Metal Doors
Length
4
Hand
Right Hand Reverse
Function
Exit Only
Device Length
48 Inch (4 Foot)
Bolt Throw
3/4 Inch
Stile
Wide Stile
Fire Rated
No
Finish Description
Satin Aluminum
Device Type
Rim Device
Latch Type
Deadlocking
ADA Compliant
No
Finish Family
Aluminum
Standards
Complies with ANSI 156.3, Grade 1 Specifications
Device Rating
Panic Exit Device
For Door Height
7 Foot
Function Family
Exit Only Device
Features
Requires Rim Cylinder for Keyed Entry; Cylinder Mounting Pad Not Required
Product Type
Exit Device
Manufacturer Parent
CRH
Sub-Series
EDT_Rim_Devices_crl_jackson_9
Minimum Stile Width
1-3/4 in. (44.5 mm)
Panic Bar Base Height
2-7/8 in. (73 mm)
Panic Head Height
7-5/16 in. (185.7 mm)
Panic Bar Projection
3 in. (76.2 mm)
Product Overview
CRL Jackson Model 2095 Rim Latch Panic Devices are UL Listed Certified ANSI 156.3 Grade 1, and manufactured in the Jackson tradition of high quality and durability. They are designed to withstand the rigors of today s world yet remain aesthetically pleasing. Suitable for use with narrow, medium and wide stile aluminum doors, as well as wood and hollow metal doors, these devices are handed - not reversible, and feature concealed easy-to-use push button dogging, a 3/4" (19 mm) throw deadlocking latch bolt, "Soft Touch" smooth quiet action push pad, and quick and easy installation. Available in Dark Bronze and Satin Aluminum anodized finish, this device comes standard with Type 'C' Strike #302436628, and may be ordered with optional Type 'S' Strike #302501628. Keyed entry may be provided by ordering and installing a standard Rim Cylinder such as DL911SCKDA, or a Jackson Outside Lever Trim Model 9500LV using a 1" Mortise Cylinder (sold separately). For wood door application order optional Wood Door Mounting Kit #302521. For double doors, use with Jackson Mullion 3089620958313.
SPECIFICATIONS:
2095 Rim Device
MATERIALS:
Plated Steel
