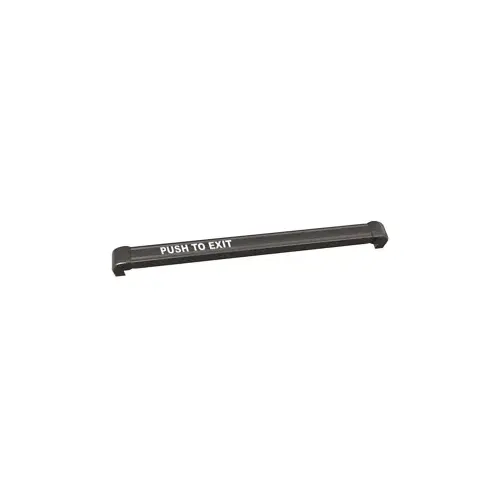

Securitron TSB-BK-48 Touch Sense Bar, 48 In., Black, Black Anodized
Item #: TSB-BK-48 by SECURITRON
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Can Be Field Cut to Accommodate Non Standard Openings Up to 48"
- Activates a DPST 2 Amp Rated Relay When Touched, No Mechanical Movement, Which Will Allow Free Egress, or Initiates the Delay on an Exit Delay Timer
- Backup Push Button
- 16 Foot 22AWG 6 Conductor Cable and Armored Door Cord Included
- MagnaCare, The Best Warranty in the Industry, Lifetime Replacement, No Fault, No Questions Asked
Finish
Black Anodized
Color
Black Anodized Aluminum
Color Code
315/335
Fire Rated
No
Origin
USA
BAA Qualified
Yes
Voltage
12/24 Volt
Device Length
48 Inch (4 Foot)
Finish Description
Black
Product Type
Electronic Exit Device/Trim
Length
4
Alternate Part Number-1
173009
Device Type
Rim Device
ADA Compliant
No
Finish Family
Black
Included Components
Backup Push Button
Power Input
12 VDC or 24 VDC
Standards
UL 294 Listed; CSA-C22.2 No. 205 Listed; CSFM-California State Fire Marshal Approved; CE: EN 50091-1, EN 61000-6-2 Approved
Function Family
Part/Component
For Door Width
36"; 42"; 48"
Electrified Features
Touch-Triggered Release
Features
can be Field Cut to Accommodate Non-Standard Openings Up to 48"; Indoor Use
Application
Non-Fire-Rated Doors
Warranty
Lifetime
Series
Parts/Accessories
Switch Type
DPST
Door Material
Metal; Aluminum; Wood
Manufacturer Parent
Assa Abloy
Sub-Series
TSB-BK-48
Current Draw
50mA (Rest); 12mA (Operating)
Product Overview
TSB Touch Sense Bar - Touch-triggered release for reliable egress
The TSB Touch Sense Bar provides touch-triggered release of electronically locked, non-fire rated doors Touching the bar, even through light gloves or clothing, triggers an electronic sensor that releases the lock. For indoor use only, the TSB installs easily on all types of metal, aluminum or wood frame doors. Meets "no special tools or knowledge" criteria in code requirements.
Product Features
Certifications
The TSB Touch Sense Bar provides touch-triggered release of electronically locked, non-fire rated doors Touching the bar, even through light gloves or clothing, triggers an electronic sensor that releases the lock. For indoor use only, the TSB installs easily on all types of metal, aluminum or wood frame doors. Meets "no special tools or knowledge" criteria in code requirements.
Product Features
- Can be field cut to accommodate non-standard openings up to 48"
- Activates a 2 DPST rated relay when touched (no mechanical movement) which will allow free egress, or initiates the delay on an exit delay timer
- Backup push button included
- 16 ft. 22AWG 6 conductor cable and armored door cord included
- Available ElectroLynx® ready
- MagnaCare Lifetime Replacement No Fault Warranty
Certifications
- ANSI/UL 294 Listed
- CSA-C22.2 No. 205 Listed
- CSFM—California State Fire Marshal Approved
- CE: EN 50091-1, EN 61000-6-2 Approved
