Touch Sense Bar, 2 AMP DPST Relay, 40MA 12/24VDC,48 In., Aluminum Clear Anodized

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

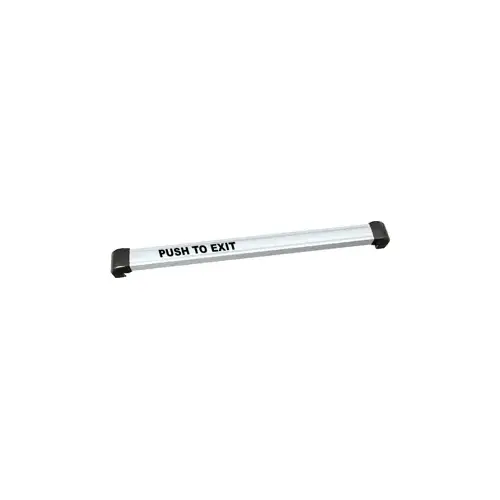

Securitron TSB-CL-48 Touch Sense Bar, 2 AMP DPST Relay, 40MA 12/24VDC,48 In., Aluminum Clear Anodized

Item #: TSB-CL-48 by SECURITRON

See reviews See reviews
In Stock

$434.44

/each
SAVE UP TO 43.44

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
  • Can Be Field Cut to Accommodate Non Standard Openings Up to 48"
  • Activates a DPST 2 Amp Rated Relay When Touched, No Mechanical Movement, Which Will Allow Free Egress, or Initiates the Delay on an Exit Delay Timer
  • Backup Push Button
  • 16 Foot 22AWG 6 Conductor Cable and Armored Door Cord Included
  • MagnaCare, The Best Warranty in the Industry, Lifetime Replacement, No Fault, No Questions Asked

Finish

Clear Anodized

BAA Qualified

Yes

Origin

USA

Fire Rated

No

Color Code

CL

Color

Clear

Voltage

12/24 Volt

Device Length

48 Inch (4 Foot)

Finish Description

Clear Anodized Aluminum

Product Type

Electronic Exit Device/Trim

Length

4

Alternate Part Number-1

173011

Application

Indoor Use; All Types of Metal, Aluminum or Wood Frame Doors

Wire Gauge

22

Warranty

MagnaCare Lifetime Warranty

Operating Temperature

32 to 110°F

Product Width

2-3/4 Inch

ADA Compliant

No

Finish Family

Aluminum

Included Components

Armored Door Cord

Contact Type

DPDT Contacts Rated 2 A

Product Depth

3 Inch

Standards

ANSI/UL 294 Listed; CSA-C22.2 No. 205 Listed; California State Fire Marshal Approved; CE: EN 50091-1, EN 61000-6-2 Approved

Function Description

Exit Only

Function Family

Part/Component

Features

Backup Push Button; Touch-Triggered Release; 6 Conductor Cable

Input Voltage

12/24 VDC

Manufacturer Parent

Assa Abloy

Sub-Series

TSB-CL-48

TSB Touch Sense Bar - Touch-triggered release for reliable egress
The TSB Touch Sense Bar provides touch-triggered release of electronically locked, non-fire rated doors Touching the bar, even through light gloves or clothing, triggers an electronic sensor that releases the lock. For indoor use only, the TSB installs easily on all types of metal, aluminum or wood frame doors. Meets "no special tools or knowledge" criteria in code requirements.
Product Features
  • Can be field cut to accommodate non-standard openings up to 48"
  • Activates a 2 DPST rated relay when touched (no mechanical movement) which will allow free egress, or initiates the delay on an exit delay timer
  • Backup push button included
  • 16 ft. 22AWG 6 conductor cable and armored door cord included
  • Available ElectroLynx® ready
  • MagnaCare Lifetime Replacement No Fault Warranty

Certifications
  • ANSI/UL 294 Listed
  • CSA-C22.2 No. 205 Listed
  • CSFM—California State Fire Marshal Approved
  • CE: EN 50091-1, EN 61000-6-2 Approved
