490 Series Satin Anodized Drop Ceiling Mount Sliding Door Kit

Roll over image to zoom in

CRL CRL490D 490 Series Satin Anodized Drop Ceiling Mount Sliding Door Kit

Item #: CRL490D by CR Laurence

See reviews See reviews

In Stock $1,194.30 /each

SAVE UP TO 119.43

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Kits Available With or Without Softbrake Braking System for 5/16" to 1/2" (8 to 12 mm) Tempered Glass
  • Can Accommodate Properly Installed Doors Weighing Up to 330 Pounds (150 kg)
  • Rollers Have Up to 1/4" (6 mm) of Vertical Adjustment to Aid in Door Alignment After Installation
  • Track Length is 118" (3 m)
  • Use Monolithic Tempered Glass

Finish

Satin Anodized

Track Length

118

Glazing Thickness

5/16, 3/8, 1/2

Maximum Door Width

53-9/16

Glazing Type

Tempered Insulated

Finish/Color

Satin Anodized

Maximum Panel Weight (Pounds)

100

Top Hung

Yes

Maximum Panel Weight

100 lbs. (45.4 kg)

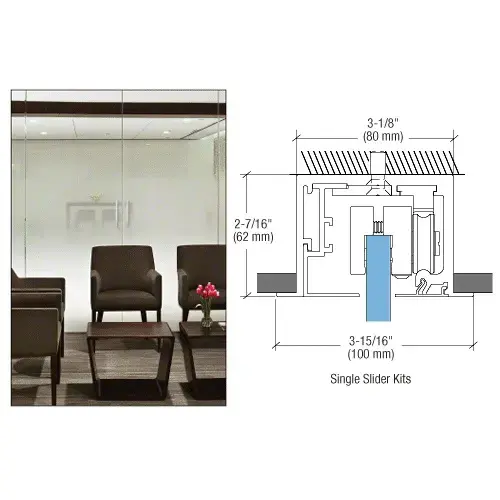

CRL 490 Series Sliding Door Kits are available in wall mount, ceiling mount, and drop ceiling mount models, with or without a sidelite, and with or without the "Softbrake" braking system. All come with everything you need except the tempered glass and pull hardware. Kits are available in satin anodized or brushed stainless anodized, finishes with a special order option to clad or powder paint in many architectural finishes. Contact Technical Sales for Commercial Products for kit selection or installation assistance.
Each Kit Contains:
  • 118" (3m) of CRL4932 Dropped Ceiling Top Track kit
  • 1 Set CRL4939 Top Hangers
  • 1 Set CRL4942 Roller Stops
  • 1 Each CRL2940 Bottom Guide
  • 1 Set CRL2945 Door Edge Guards
  • 1 Set CRL2929TF Top Track Insert Fasteners
    One "Softbrake" is required for each direction of travel. Minimum sliding panel width of 30-7/8" (785 mm) for control in a single direction: 42-1/2" (1080 mm) for control in both directions. Existing CRL490 Series installations can be easily upgraded by ordering kits.

    .
