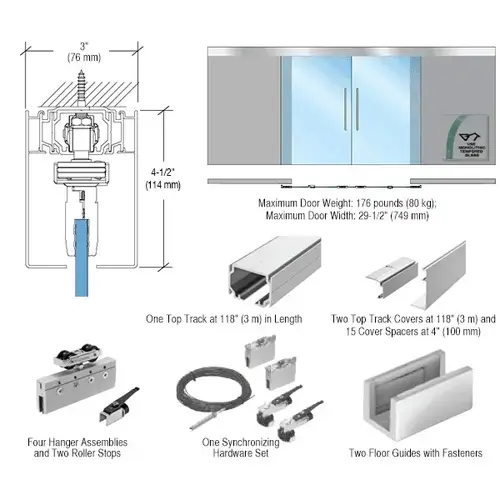

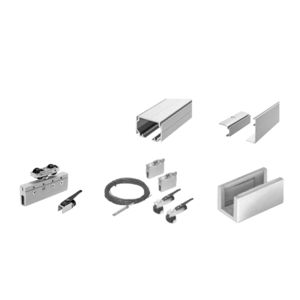

These CRL50 Kits are designed for synchronized movement of two bi-parting panels where the top track is mounted to a structural ceiling. Kits come with all the hardware needed to complete the installation, except the glass and door pulls.
Operation of a single panel moves the other panel in a smooth synchronized fashion.
NOTE: Laminated glass should not be used with CRL50/51 Series Kits.
Product Warning:
STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers
CRL CRL50CS2 50 Series Bi-Parting Synchronized Ceiling Mount Kit Satin Anodized
Item #: CRL50CS2 by CR Laurence
See reviewsSee reviews
HURRY! Low in stock
$2,034.86
/eachSAVE UP TO 203.49
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Synchronized Operation of Two Bi-Parting Panels
- For 5/16" or 3/8" (8 or 10 mm) Tempered Glass
- Satin Anodized Finish
- Rollers Have Up to 1/4" (6 mm) of Vertical Adjustment
- Can Accommodate Doors Weighing Up to 176 Pounds (80 kg), Maximum Door Width of 29-1/2" (750 mm)
Finish
Satin Anodized
SomeNewAttribute
Same Value
Type
Bi-Parting Synchronized Ceiling Mount Kit
Length
118" (3m)
Shelf Life
Overall Length
118" (3m)
Track Length
118
Glazing Thickness
5/16, 3/8
Glazing Type
Tempered Insulated
Finish/Color
Satin Anodized
Maximum Panel Weight (Pounds)
100
Top Hung
Yes
Maximum Panel Weight
100 lbs. (45.4 kg)
Product Overview
These CRL50 Kits are designed for synchronized movement of two bi-parting panels where the top track is mounted to a structural ceiling. Kits come with all the hardware needed to complete the installation, except the glass and door pulls.
Operation of a single panel moves the other panel in a smooth synchronized fashion.
NOTE: Laminated glass should not be used with CRL50/51 Series Kits.
Product Warning:
STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.
