CRL CRL50S2 50 Series Bi-Parting Synchronized Wall Mount Kit
Item #: CRL50S2 by CR Laurence
See reviews See
reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How
Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Synchronized Operation of Two Bi-Parting Panels
- For 5/16" or 3/8" (8 or 10 mm) Tempered Glass
- Rollers Have Up to 1/4" (6 mm) of Vertical Adjustment

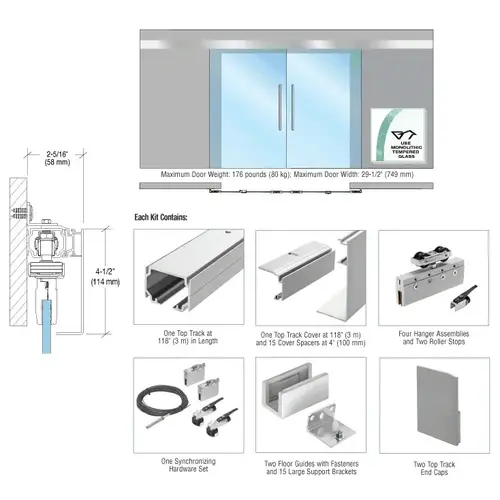

- Can Accommodate Doors Weighing Up to 176 Pounds (80 kg), Maximum Door Width of 29-1/2" (750 mm)
- Use Monolithic Tempered Glass
Finish
Satin Anodized
SomeNewAttribute
Same Value
Type
Bi-Parting Synchronized Wall Mount Kit
Length
118" (3m)
Shelf Life
Overall Length
118" (3m)
Track Length
118
Glazing Thickness
5/16, 3/8
Glazing Type
Tempered Insulated
Finish/Color
Satin Anodized
Maximum Panel Weight (Pounds)
100
These CRL50 Kits are designed for synchronized movement of two bi-parting panels where the top track is mounted to a structural wall. Kits come with all the hardware needed to complete the installation, except the glass and door pulls.
Operation of a single panel moves the other panel in a smooth synchronized fashion.
NOTE: Laminated glass should not be used with CRL50/51 Series Kits.
Product Warning:
STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.
.
