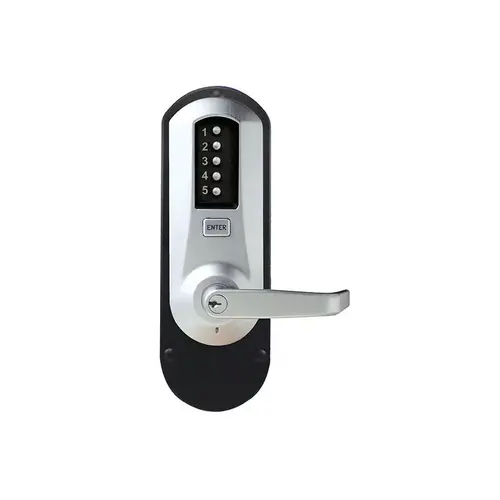

Kaba Access 5010MWL-26D-41Click To Copy 5000 Series Mechanical Pushbutton Exit Trim, Satin Chrome

Simplex 5000 SeriesMechanical Locks

Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards.

The Simplex 5000 Series provides exterior access by combination, while allowing free egress. This fully mechanical lock elimates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door. The lock is available in a wide range of configurations. See the table below for the available options.

Features: Access Control:

• Mechanical pushbutton lock—eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. Provides exterior access by combination, while allowing free egress

No Battery:

• Fully mechanical lock eliminates the material and labor expense of battery replacements

Number of Codes:

• Single access code—one easy-to-manage code for all users

Programming:

• Lock is easily programmed via keypad without removing the lockfrom the door

Handing:

• Non-handed, pre-assembled for left-hand door installations—easily changed in the field

Key Override:

• Key-in-lever cylinders, small format interchangeable cores, large format removable cores

Direct Drive Design:

• Clutch free design—minimizes friction and wear

Economical:

• A cost effective access control solution

Operation Modes:

• Pushbutton Acces

• Passage (select models)—allows access without using the lock access code. Feature activated from the inside with a thumbturn or key (included with all passage feature models).

• Exit Trim—may be "dogged" if Exit Device allows

• Lockout (select models)—disables the lock from the inside so that the code cannot be used to gain access. Access is permitted using the key override only when in this mode (5067 model only).

Locking Device Options: Cylindrical:

• Cylindrical latch with 3-hour UL/ULC fire rating on "A" labeled doors

Rim Exit Device:

• Compatible with most leading brands of Exit Devices (ExitDevice and mounting hardware not included). Universal mounting plate (included) simplifies installation and eliminates any requirement to stock different locks/platesfor various Exit Devices.

American Standard Mortise:

• With 11/4" (32 mm) face plate; with and without deadbolt

Exit Device Compatibility:

• Arrow S1250
• Arrow S3883F/S3800
• Black & Decker (K-2) QED111/112
• Cal Royal 9800
• Cal Royal 2200
• Corbin Russwin ED5200/5200A

• Detex 1001 BP1
• Detex 10/F10 Series
• Dorex 8500R/8500F
• Dorex 9500PR/9500FR
• Dorma 9300/F9300
• Monarch 18R*, F18R*

• Precision 21/FL21
• Sargent 2828
• Sargent 3828
• Sargent 8810E/8800
• Sargent 8888
• Von Duprin 22/22F

• Von Duprin 98/98F
• Von Duprin 99/99F
• Von Duprin XP98/99
• Yale YME2100/2100
• Yale 7100

• *(requires special K-Hub Adapter)
• ATTENTION: Compatibility is subject to change if modifications are made by Exit Device manufacturers without Kaba's knowledge.For the most accurate listing of compatible Exit Devices, visit https://kaba.to/Simplex5000.

Mechanical Features: Construction:

• Extra heavy-duty solid cast housings; solid cast levers, ADA-compliant levers, and wear tested for extensive use on indoor and outdoor applications

Numeric Keypad:

• Vandal resistant, metal pushbuttons

Backset:

• Cylindrical — 2 3/4" (70 mm) backset, 2 3/8" (60 mm) backset
• Exit Device — Varies by exit device
• Mortise — 2 3/4" (70 mm) backset

Latch:

• Cylindrical — 1/2" (13 mm) latch, 3/4" (19 mm) latch (optional)
• Exit Device — Supplied with Exit Device
• Mortise — 3/4" (19 mm) latch, 1" (25 mm) deadbolt (optional)

Universal Mounting:

• Simplex 5000 Exit Trim — Universal mounting plate (included) simplifies installation and eliminates any requirement to stock different locks/plates for various exit devices

Minimum Stile Recommended:

• 5" (127 mm)

Weight:

• Cylindrical—9.25 lbs. (4.19 kg)
• Exit Device—8 lbs. (3.63 kg)
• Mortise—11 lbs. (4.98 kg)

Universal Key-in-Lever:

• Includes Kaba 1599 6-pin cylinder with two keys, Kaba 90 or Schlage "C" keyway, keyed different.
• Includes four additional tailpieces for compatibility with:

• Abloy 5277; 5477
• Arrow C100
• ASSA 65611; 65691
• Corbin Russwin 2000-03

• Kaba 1539; 1599
• Kaba Gemini 4730
• Kaba Peaks 1099
• Marks

• Medeco 20W200H1
• Sargent 10 Line
• Schlage 23-001
• Schlage Primus 20-760

Australian:
• Kaba expert 107K5, Boyd KC286

European:
• Quattro S/Expert, AP2 (5 and 6-pin)

Key Override: Interchangeable Cores:

• Small format—Best and equivalents (6 or 7-pin length); core not included

Removable Cores:

• Large format — ASSA/Medeco/Yale/Abloy (5 or 6-pin),Corbin Russwin (6 or 7-pin length), Schlage, and Sargent ; core not included

Installation: Door Preparation:

• Easily installs on wood or metal doors. ASA 161 door preparation with additional through holes.

Door Thickness:

• Cylindrical — 1 3/8" (35 mm) to 2 1/4" (57 mm)
• Pre - assembled to accommodate doors 1 5/8" (41 mm) to
  2" (51 mm)
• Exit Device and Mortise — 1 3/4" (44 mm) to 2 1/4" (57 mm)
• Pre - assembled to accommodate doors 1 3/4" (44 mm) to 2 1/8" (54 mm)

Items Supplied Include:

• Lock assembly, installation manual, full scale template, and required hardware

Warranty:

• 3-year warranty

Available Finishes: Standard Finishes:

• Satin Chrome 26D (626) housings and levers
• Black (676) housings with Satin Chrome 26D (626) levers and accents

Optional Finishes:

• Bright Brass 03 (605) housings and levers
• Satin Brass 04 (606) housings and levers
• Bright Chrome 026 (625) housings and levers
• Dark Bronze housing and levers with brass accents

Cylindrical: Model 502x:

• Combination Entry
• Key Override
• Exterior Combination Change
• Knob Available

Model 503x:

• Combination Entry
• Key Override
• Interior Combination Change, D.O.D. Compliant
• Knob Available

Model 504x:

• Combination Entry
• Key Override
• Exterior Combination Change
• Passage
• Knob Available

Model 505x:

• Combination Entry
• Key Override
• Interior Combination Change, D.O.D. Compliant
• Passage
• Knob Available

Mortise: Model 5066:

• Combination Entry
• Key Overrid
• Exterior Combination Change (only)

Model 5067:

• Combination Entry
• Key Override
• Deadbolt
• Lockout
• Exterior Combination Change (only)

Model 5068:

• Combination Entry
• Key Override
• Passage
• Exterior Combination Change (only)

Exit Device: Model 5010:

• Combination Entry
• Key Override
• Exterior Combination Change (only)
• Egress with Exit Device (not supplied)
