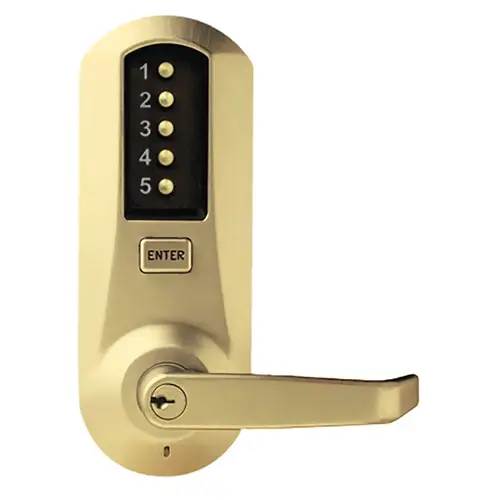

Kaba Access 5031BWL-04-41 5000 Series Mechanical Pushbutton Cylindrical Lever Lock Satin Brass
Item #: 5031BWL-04-41 by Ilco
Brand: Kaba Access
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Access Control: Mechanical pushbutton lock—eliminates problems and costs associated with issuing, controlling, and collecting keys and cards
- No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements
- Number of Codes: Single access code—one easy-to-manage code for all users
- Programming: Lock is easily programmed via keypad without removing the lock from the door
- Handing: Non-handed, pre-assembled for left-hand door installations—easily changed in the field
- Key Override: Key-in-lever cylinders, small format interchangeable cores, large format removable core
- Accessibility Standard: Americans with Disabilities Act (ADA)
Color
Satin Brass
Grade
Grade 1
Special Marks
Complies with ADA accessibility guidelines
Cylinder Type
SFIC Prep Less Core
Package Qty
1
Color Code
606/US4
Lock Platform
Cylindrical Lock
Base Material
Brass
Application
Commercial; Residential; Industrial; Healthcare; Education; Military and Government; Utilities
Hand
Left Hand
Backset
2-3/4 Inch
Handing
Left Hand
Warranty
3 year
Function
3-Cylindrical Lock, Interior Combination Change
Handle Type
Lever
Door Thickness
Cylindrical: 1-3/8" to 2-1/4"; Pre-Assembled to Accommodate Door: 1-5/8" to 2"
Strike
ANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner
Latch Throw
1/2 Inch
Finish Description
Satin Brass
ADA Compliant
YES
Finish Family
Satin Brass
Included Components
Installation Manual; Full-Scale Template; Required Installation Hardware
Lever Style
WL-Winston Lever
Rose/Escutcheon Trim
Simplex
Locking Device
Cylindrical
Standards
UL Listed
Trim Style
Winston
Function Family
Pushbutton Lock
Minimum Stile Width
5 Inch
Faceplate Type
Floating
Features
Lock is Easily Programmed Via Keypad Without Removing Lock From the Door; Key Override Allows Entry by Key Which Overrides Keypad; No Batteries; Weather Resistant
Product Type
Push Button Lock
Series
5000 Series Simplex
Manufacturer Parent
DormaKaba
Programming Method
Keypad
Number of Access Codes
1
Key Override Core Type
Small Format Interchangeable Core
Lock Dimensions
8-7/8" x 3-3/8"
Lever Style Family
Straight Return Lever
Sub-Series
5031-B-WL-26D-41
Finish
606 - Satin Brass
Substrate Type
Brass or Bronze
Door Handing
Non-Handed
Stile Width
5"
Stile Type
Wide Stile
Lock Type
Cylindrical
Keying
Keyed Alike (only applies if multiple locks are purchased)
Cylinder and Keyways
C Keyway
Door Thickness Range
1-3/8" to 2-1/4"
Latch
2-3/4"Backset, 1/2" Throw Latch - Standard
Standard Cylinder
Conventional Cylinder
Key Override
B - SFIC, BEST and equivalents (6 or 7-pin length), Core not included
Product Overview
Cylindrical Combination Lever Lock, Interior Combination Change, DOD, 2-3/4" Backset, 1/2" Throw Latch, 6/7-Pin SFIC Prep, Less Core, Satin Brass
Simplex mechanical pushbutton locks offer a convenient way to control access between public and private areas. There are no keys or cards to manage, no computers to program, no batteries to replace, and combinations can be changed in seconds without removing the lock from the door.
Provides exterior access by combination, while allowing free egress.
