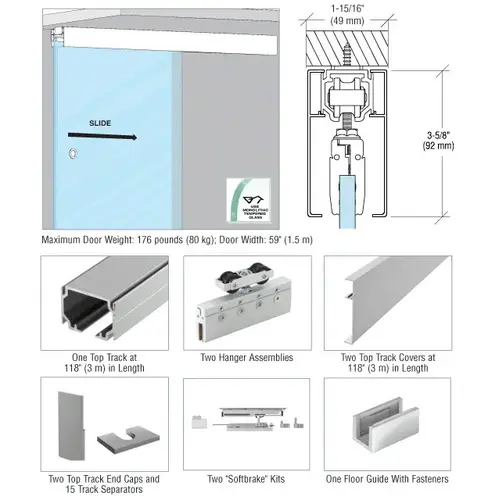

This configuration of the CRL51 Series Slider is used for single door applications where the top track mounts to a structural ceiling. Kit includes two Top Track Covers to conceal the Top Track and Hanger Assemblies, making for an attractive yet simple installation. Pull hardware ordered separately. One "Softbrake" is required for each direction of travel to be controlled per panel. Minimum sliding panel width of 25-9/16" (650 mm) for control in a single direction; 31-1/2" (800 mm) for control in both directions of travel.
NOTE: Laminated glass should not be used.
Product Warning:
STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers
CRL CRL51C 51 Series Ceiling Mount Single Slider Kit Satin Anodized
Item #: CRL51C by CR Laurence
See reviewsSee reviews
In Stock
$1,655.22
/eachSAVE UP TO 165.52
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- "Softbrake" Braking System
- Softbrake Braking System
- For 5/16" or 3/8" (8 or 10 mm) Tempered Glass
- Use Monolithic Tempered Glass
Length
118" (3m)
Overall Length
118" (3 m)
Shelf Life
Finish
Satin Anodized
Track Length
118
Glazing Thickness
5/16, 3/8
Glazing Type
Tempered Insulated
Finish/Color
Satin Anodized
Minimum Door Width (Inches)
25-9/16
Maximum Panel Weight (Pounds)
100
Top Hung
Yes
Minimum Door Width
25-9/16 in. (649 mm)
Maximum Panel Weight
100 lbs. (45.4 kg)
Product Overview
This configuration of the CRL51 Series Slider is used for single door applications where the top track mounts to a structural ceiling. Kit includes two Top Track Covers to conceal the Top Track and Hanger Assemblies, making for an attractive yet simple installation. Pull hardware ordered separately. One "Softbrake" is required for each direction of travel to be controlled per panel. Minimum sliding panel width of 25-9/16" (650 mm) for control in a single direction; 31-1/2" (800 mm) for control in both directions of travel.
NOTE: Laminated glass should not be used.
Product Warning:
STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.
