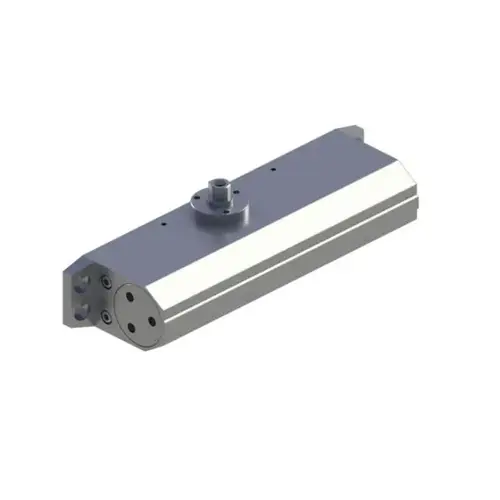

Hager 5301GOL 5300 Series Door Closer Part, Satin Brass Painted

5300 Series Grade 1 Heavy Duty Surface Door Closer

The 5300 Series Closers offer a compact design for a variety of applications. They are constructed of aluminum alloy to withstand the use and abuse you come to expect of Hager Companies Grade 1 products. The 5300 Series closers provide the flexibility needed to meet the many demands of both commercial and institutional applications, including the ADA barrier-free accessibility requirements. The sizing is adjustable from size 1 through size 6. These design features make this closer the ideal choice for doors with a maximum weight of 250 lbs.

Warranty:

• Lifetime warranty - 250 lbs. maximum door weight

Features:

• Ideal for schools, hospitals, and other high-use environments

• Standard package contains 5301 closer body, 5302 closer cover, 5902 pinion cap, 5303 main arm assembly, 5304 standard screw pack, 5900 parallel arm bracket, and 5902 SNB screw pack for 1-3/4" (44 mm) door

Certification:

• BHMA Certified ANSI A156.4, adjustable sizes 1 to 6
• ADA Compliant ANSI A117.1 Accessibility Code
• UL/cUL Listed for up to 3 hours
• UL10C Positive Pressure Rated
• UL10B Neutral Pressure Rated

Covers:

• Full plastic cover and pinion cap - Standard

Closer Body:

• Aluminum alloy
• The recommended temperature for prolonged use is between -40º F (-42º C) & 150º F (66º C)

Springs:

• Double heat treated steel, tempered springs

Valves:

• Adjustable latching and sweep speed valves
• Adjustable backcheck valve - Standard
• Delayed action valve - Optional
• Staked valves - Standard

Handing:

• Non-handed

Arms & Brackets:

• Tri-Pack: Regular, Parallel Arm, and Top Jamb Mount - Standard
• 15% power adjustment in standard arm for regular and top jamb mount

Specifications: Door Thickness:

• 1-3/4" (44 mm) - Standard
• 1-3/8" - 2-1/4" (36 mm - 57 mm) thick door - Optional

Fasteners:

• Self-reaming, self-tapping wood and machine screws
• Sex nuts and bolts

Notes:

• Full rack and pinion operation
• Precision machined, heat treated steel piston
• Triple heat treated steel spindle
• Special templates available upon request by contacting Hager Companies Customer Service

Finishes:

• ALM, BLK, BRZ, DBZ, GOL
• 15% power adjustment in standard arm for regular and top jamb mount
