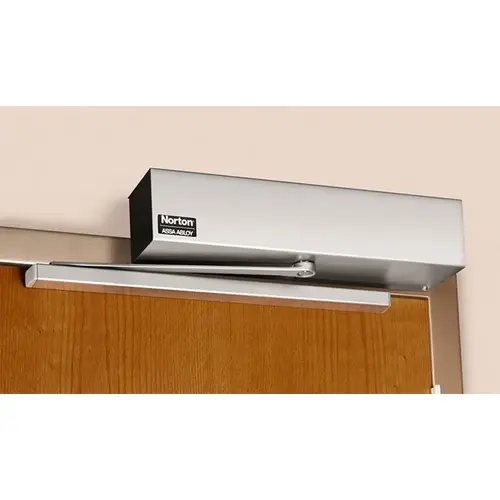

5600 Series Low Energy Operator, Dark Bronze Painted

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Norton 5610 690Click To Copy 5600 Series Low Energy Operator, Dark Bronze Painted

Item #: 5610 690 by Norton

See reviewsSee reviews

$1,714.56

/each
SAVE UP TO 171.46

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Operators for interior doors shall be products of one manufacturer and be matched in style.
  • Operator (non-fire rated doors) closing force shall be adjustable to ensure adequate closing control and shall simulate conventional door closer opening and closing forces unless the power operator motor is activated or in the event of a power outage to the operator.
  • Operators shall be non-handed and have electrically controlled backcheck, sweep, and latch with manual adjustment to set both the full open and full closed door positions.
  • Maximum door open shall be adjustable up to 95°, pull side mounting, conditions permitting.
  • Operators can be SELECTIVELY ACTIVATED (i.e. external wall switches, radio frequency devices).
  • Operators shall have input line rating of 120VAC, .6A, and include on board relay contact for interfacing with products having a rating of 24VDC at 1A.
  • Door operators shall include an external On/Off Switch to defeat powered opening cycle and an internal circuit breaker switch to interrupt input power for servicing.
  • Operators shall be ETL certified and conform to ANSI/U.L. standard 325 for automatic closing doors.
  • Door operators shall be in compliance with the requirements of the Americans with Disabilities Act (ADA) and ANSI/BHMA standard A117.1.

Package Volume

1307.8125

Color

Dark Bronze Painted

Hand

Non-Handed

Degree Swing

95¼

Type

Surface

Application

Rigid Arm, Slide Track, Pull Side

Package Qty

1

Package Height

6.75"

Door Size

32" to 36"

Mounting Location

Pull Side

Package Width

7.75"

Color Code

690/US20

Origin

USA

BAA Qualified

Yes

Mounting Style

Slide Track

Base Material

VARIES

Package Length

25"

Arm Type

Slide Track Arm Standard

Voltage

24 Volt

Finish

Dark Bronze Painted

Function

Pull Side Operator

Mount

Pull Side

Finish Description

Dark Bronze Painted

Product Type

Door Operator

Series

5600 Series

ADA Approved

False

Healthy Solution

Touchless

ADA Compliant

YES

Finish Family

Dark Bronze

Power Input

120VAC

Standards

ETL; ANSI/UL 325; ADA

Closer Arm Type

Slide Track Arm

Function Family

Power Door Operator

For Door Width

32" to 36"

Features

Quiet Operation; Electrically Controlled Backcheck; Sweep and Latch; Ease of Installation and Set-up; Door Closer Mode for Manual Usage; Electric Hardware and Access Control Interface

Overall Length

17-3/4 Inch

Power Output

24VDC

Mounting Type

Pull Side

Warranty

1 Year Limited Warranty

Current Draw

0.6A

Manufacturer Parent

Assa Abloy

healthy_solution

Touchless

Sub-Series

DC_Power_Operators_norton_1

Product Overview
5600 SeriesLow Energy Power Operator

The 5600 Series Operators offer functionality and control at an affordable price. Ideal for retrofit applications, the 5600 Series converts interior, non-fire rated doors for ADA compliance easily and affordably and provides a simple way to achieve touchless environments in public restrooms. Available for push or pull mounting, this unit can be operated manually or activated by wall switches, or radio frequency devices. Easy to install, set-up and adjust, the 5600 Series is perfect for ADA-compliant offices, classrooms and dorm rooms, and touch free applications like public restrooms, labs and examination rooms.

Features:
  • Push or pull side mounting
  • Non-handed
  • Quiet operation
  • Electrically controlled backcheck, sweep and latch
  • Activation options: wall switches, radio frequency devices
  • Ease of installation and set-up
  • On/Off Switch
  • Hold open options: 0-30 seconds
  • (5 seconds minimum required for ADA and ANSI/BHMA A156.19)
  • Onboard 24VDC (1.1A) power supply for accessories
  • Door closer mode for manual usage
  • Electronic motor dampening - provides feel of high performance, manual door closer
  • Electric hardware and access control interface
Patents:
  • Pending
Functions: Adjustable Hold Open:
  • Amount of time a door will stay in the full open position after an activation
Executive Mode Feature:
  • When door receives activation signal it opens and remains open until either a second signal is received or door is manually moved in closing direction
Obstruction Detection:
  • Motor stops if door is obstructed during opening; door will rest against obstruction
On/Off Switch:
  • Disables operator activation
Open Delay:
  • Delays operator opening for locking hardware
Overload Safety Shut-Off:
  • After 2 minutes of receiving a door activation signal, inverter times out and door closes
  • Prevents motor/inverter damage
Push & Go:
  • As the door is manually opened, the operator "senses" movement and opens door to the full-open position
Electrical Data:
  • Power Input; 120 VAC, 60Hz
  • Current Draw: 0.6A
  • Relay Output: SPDT
  • Normally open/normally closed (jumper)
  • For electric strike function
Certifications:
  • ANSI / BHMA A156.19 certified
  • ETL certified; conforms to ANSI/UL standard 325 for automatic closing doors
  • Comply with requirements for the Americans with Disabilities Act (A.D.A.)
