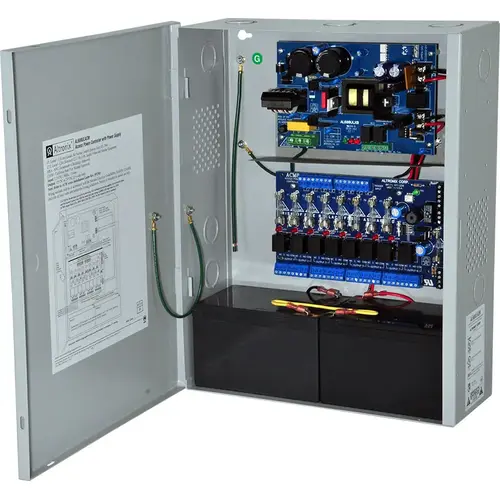

Altronix AL600ULACM Access Power Controller w/Power Supply
Item #: AL600ULACM by Altronix
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- 115VAC Input 60Hz Rated at 3.5A
- 12VDC or 24VDC Outputs
- Filtered and Electronically Regulated Outputs
- AC Fail Supervision
- Low Battery Presence Supervision
Output Amps
6 AMPS
Type
Wire-In Transformer
Output Volts
12/24 VDC
Voltage
12 Volt
Product Type
Power Supplies
Access Type
Power Supply
Alternate Part Number-1
143435
Voltage/Amp Rating
12 - 24V DC
Manufacturer Parent
Altronix
Number of Relays
8 Foot (96 Inches)
Enclosure Style
BC400 Enclosed
Output Type
Dual Voltage
Battery Included
No
Class 2 Output Limited
Yes
Power Supply Type
Switching
Function
Power Supply
Sub-Series
AL600ULACM
Fuse Size
3.5A
ADA Compliant
No
Operating Temperature
32 to 120°F
Number of Outputs
2 Inch
Visual Indicators
Relay Energized; FACP Disconnect; AC Input and DC Output Indicators
Standards
UL294 Listed; cUL Listed For CSA Standard C22.2 No.205-M1983; California State Fire Marshal Approved
Rated Voltage
12/24VDC
Monitoring Option
Yes
Fire Alarm Interface
Yes
Battery Type
Lead Acid; Gel
Features
Filtered, Electronic Regulated Output; Short Circuit, Thermal Overload Protection; Fire Alarm Disconnect; Built-in Charger; Automatic Switch Over; Battery Fail, Battery Presence, and AC Fail Supervision; Zero Voltage Drop
Product Dimensions
12-1/4" x 15-1/2" x 4-1/2"
Series
Parts/Accessories
Battery Backup
YES
Input Voltage
115VAC
Product Overview
Access Power Controller w/ Power Supply/Charger, 8 Fused Relay Outputs, 12/24VDC @ 6A, FAI, 115VAC, BC400 Enclosure
AL600ULACM
Key Features
AL600ULACM
Access Power Controller w/ Power Supply/Charger, 8 Fused Relay Outputs, 12/24VDC @ 6A, FAI, 115VAC, BC400 Enclosure
Altronix AL600ULACM converts a 115VAC 60Hz input into eight (8) independently controlled 12VDC or 24VDC Fail-Safe and/or Fail-Secure outputs with a total of 6A continuous supply current. These power outputs can be converted to dry form "C" contacts. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. This unit will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. The outputs will operate in both Fail-Safe and/or Fail-Secure modes. This unit is designed to be powered by one common power source (factory installed) which will provide power for both the board operation and locking devices, or two (2) totally independent power sources, one (1) providing power for board operation and the other for lock / accessory power. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight (8) outputs.
Key Features
- Eight (8) independently controlled outputs
- Eight (8) auxiliary power outputs (unswitched)
- Output fuses are rated @ 3.5A/li>
- Filtered and electronically regulated outputs
- Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the eight (8) outputs
- Alarm output relay indicates that FACP input is triggered
- Built-in charger for sealed lead acid or gel type batteries
- Instantaneous transfer to stand-by batteries
- UL Listed in the U.S. and Canada
- Lifetime Warranty / Made in the U.S.A.
