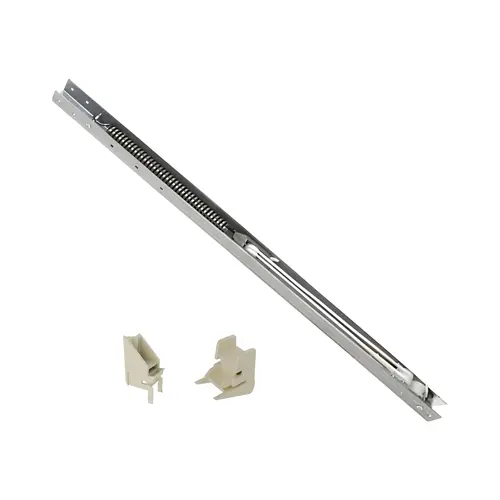

Brixwell 60-283-1 Window Channel Balance 16 To 23 Lbs Sash Weight 29" Length With 60-507a Top and 60-501a Bottom Sash Guide Attached Aluminium
Item #: 60-283-1 by Brixwell
Brand: Brixwell
See reviewsSee reviews
In Stock
$13.56
/eachQUICK SHIPPING*Usually ships in 1 business dayIn stock: 1154 units available
Sash Guide: With 60-507a Top and 60-501a Bottom
With 60-506a Top And 60-500a Bottom
With 60-507a Top and 60-500a Bottom
With 60-507a Top and 60-501a Bottom
With 60-507a Top And 60-502a Bottom
With 60-507A Top And 60-587A Bottom
With 60-507A Top And 60-598A Bottom
With 60-508A Top And 60-500A Bottom
With 60-508a Top and 60-501a Bottom
With 60-508a Top and 60-503a Bottom
With 60-508A Top And 60-516A Bottom
With 60-508A Top and 60-598A Bottom
With 60-508a Top and 60-904a Bottom
With 60-508a Top And 60-943a Bottom
With 60-508a Top And 60-980a Bottom
With 60-513a Top and 60-505a Bottom
With 60-560a Top And 60-561a Bottom
With 60-569a Top and 60-516a Bottom
With 60-575A Top And 60-576A Bottom
With 60-595a Top And 60-596a Bottom
With 60-901a Top And 60-902a Bottom
With 60-936a Top And 60-500a Bottom
With 60-508a Top And 60-5011a Bottom
Without
QTY
–
+
+ Add to Wishlist
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Aluminium material provides structural integrity for sash counterbalance systems
- Aluminium finish maintains functional consistency across repeated sash cycles.
- Channel width 9/16", depth 1/2", and length 29" for jamb track alignment.
- White Plastic Top guide comes with 9/16" upper width, 1/2" lower width, 1-1/4" height, 23/32" upper depth to support sash interface.
- Plastic Bottom guide 15/32" width, 1-1/8" height, and 1" depth for alignment.
- Rated for window sashes within the 16 to 23 lbs weight range, providing assisted lift and controlled lowering through the opening height.
- Installs vertically in the jamb track with engagement to a compatible sash shoe; set tension and retention per the window specification.
Finish
Aluminium
Material
Aluminium
Number on Balance
2830
Bottom Sash Guide (W x H x D)
15/32" (12mm) x 1-1/8" (29mm) x 1" (25mm)
Channel (W x D x L)
9/16" (14mm) x 1/2" (13mm) x 29" (737mm)
Top Sash Guide Height
1-1/4" (32mm)
Top Sash Guide Upper Width
9/16" (14mm)
Sash Guide Material
Plastic
Sash Guide
With 60-507a Top and 60-501a Bottom
Sash Guide Finish
White
Top Sash Guide Lower Width
1/2" (13mm)
Sash Guides Attached
Yes
Top Sash Guide Upper Depth
23/32" (18mm)
Sash Weight Range
16 to 23 lbs
Product Overview
The 29" Window Channel Balance is designed for supporting and counterbalancing window sashes in hung window systems. Built from aluminium with an aluminium finish, the balance helps to provide stable vertical motion through its internal spring mechanism. The channel measures 9/16" width, 1/2" depth, and 29" length, engineered for sashes weighing between 16 and 23 lbs. It includes an attached plastic 60-507a top sash guide and 60-501a bottom sash guide with white finish for direct installation. The top guide features a 9/16" upper width, 1-1/4" height, 23/32" upper depth. 1/2" lower width while the bottom guide measures 15/32" width, 1-1/8" height, and 1" depth. These guides align the sash edges within the jamb track, providing balanced travel during operation. The component supports smooth sash movement by offsetting sash weight with internal spring tension. Suitable for general hung window assemblies, it installs within the jamb track using compatible hardware. Routine cleaning and inspection maintain consistent function.
