CRL Multi-Purpose Glass Storage Systems are designed for the upright storage of glass cases, glass (stoce) packs and loose lites. All Standard Components are protected with a Powder Coated Finish for durability.
Notes:
Dimensions: Rail Size: 11" x 5.5" x 60"
Center Rail Size: 4.5" (7.25" with flange) x 5.75"
Product Warning:
Rails designed with slots to hold 2 x 4 s which protect the slab edges and the finish on the rails (2 x 4's not included). Optional Easy Slide System (made of low friction material) can be mounted to the 2 x 4 s for extra protection
Center rail with easy slide must be used to support the glass when sliding individual pieces in and out of the rack
Complete with 11" connector tube for butting rails together in a straight line for desired length

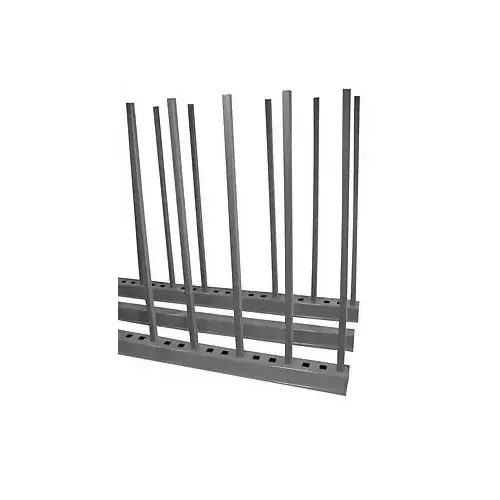

Outside rails built with 2" square holes spaced 4" apart. A steel plate with identical holes is welded and boxed inside the rails, 1" up from the bottom
2" square tube posts and 2" square rubber post caps to separate glass
Heavy-duty powder coated finish
Minimum of 2-degree angle when dropping stone in between posts
