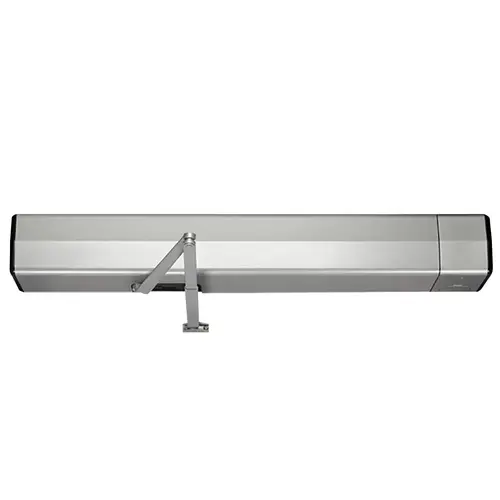

Norton 6061 689 ADA Low Energy Operator Push Side, Wi-Fi Interface, Heavy Duty, Heavy Duty Double Lever Arm, Up to 110 Degree Opening, 120 VAC Input, UL, 689/SP28 Aluminum Powder Coat
Item #: 6061 689 by Norton
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Color
Aluminum Painted
Color Code
689/US28
Fire Rated
3 Hours {A}
Origin
USA
BAA Qualified
Yes
Package Height
4
Package Length
42
Package Volume
2184
Package Width
13
Voltage
120 volt
Finish
Aluminum Painted
Function
Push Side Operator
Mount
Push Side
Finish Description
Aluminum Painted
Product Type
Door Operator
Series
6000 Series
Healthy Solution
Touchless
Warranty
2 Year
Aluminium Bottle Contents
Swinging
ProductType
Manual
Overall Length
37-1/2 Inch
Power Output
24VDC
Mounting Type
Push Side
Spring Size
1-6
Current Draw
0.9A; 1.8A;
ADA Compliant
YES
Finish Family
Aluminum
Power Input
120VAC
Standards
ANSI/BHMA A156.19; UL / cUL; U L10C Listed
Closer Arm Type
Heavy-Duty Double Lever
Function Family
Power Door Operator
For Door Width
36" to 48"
Minimum Top Rail Width
2-3/16 Inch
Cover Height
5-3/16 Inch
Features
Built-in Intelligence Enables the Operator to Safeguard Users While Providing Better Door Control; Simple Installation and Adjustment
Door Opening Range
85° to 110°
Manufacturer Parent
Assa Abloy
Minimum Frame Height
1-1/2 Inch
Minimum Door Width
36 Inch
Cover Projection
4-3/4 Inch
Frame Reveal
2-1/4" to 4-3/4"
SPDT Relay Output
1A
healthy_solution
Touchless
Sub-Series
DC_Power_Operators_norton_6
Alternate Part Number-1
170649
MADE IN THE USA
No
Package Quantity
1
UL Listed
No
Door Handing
Non-Handed
AbilityOne
No
UNSPSC
30171514
Adjustable
True
GSA Approved
No
TAA/BAA Compliant
Yes
Product Overview
Low Energy Surface Mounted Electrohydraulic Door Operator, Double Lever Arm Heavy Duty, Push Side Mounted, Top Jamb, Up to 36" Door, 2-1/4" - 4-3/4" Reveal, 85 Deg. - 100 Deg. Swing, Aluminum Painted Finish
The 6000 Series low energy operator is a heavy-duty unit designed for rigorous, high-use applications. Built-in intelligence enables the operator to safeguard users while providing better door control. Simple installation and adjustment features combined with the units high level of versatility allows for seamless integration with a multitude of facilities and systems.
The 6000 Series combines intelligence, reliability and superior control in one package.
Designed for moderate to high traffic applications, this operator has a two-piece sub-assembly for easy installation and LCD screen for clear and accurate read-out of operating settings. Available for push or pull side mounting, the 6000 Series can be operated manually or activated via wall switches or radio frequency devices. This reliable unit ensures consistent opening and closing based on dual mode, electrohydraulic technology and is ideal for hospitals, office buildings, sports arenas or government facilities.
Functions:
- Push and Go selector
- As the door is manually opened, the operator "senses" movement and opens door to the full-open position
- Open/Close obstruction detection
- Open: Door closes if it hits an obstruction while opening
- Close: Door re-opens (once) if it hits an obstruction while closing – if the door hits the obstruction again, the door will rest against the obstruction until it is removed
- Motor startup delay adjustment
- Delays operator opening
- Vestibule delay adjustment
- Hold open delay adjustment
- Single Pole Double Throw (SPDT) relay output
- SPDT relay output time adjustment
- SPDT alarm output
- Blow open for smoke ventilation
- Presence detector input
- Selector mode switch
- Off – Disables signal inputs except blow open
- On – Activates signal inputs
- Infinite Hold Open - Door will hold open at set position until power is turned off
Features:
- Push or pull side mounting
- Non-handed
- 1.3A onboard power supply
- Activated by push button, handsfree and RF devices
- Infinite hold open
- Maximum door size 4'0" x 8'0", 250 lbs
- Push and Go opens door to full-open position upon manual activation
- Obstruction Detection on both open and close cycle
- Operates as a mechanical surface closer when power is off
- On board electronics collect usage and cycle count data to facilitate preventative maintenance/diagnostics
- 2 year limited warranty
